Instrument Panel J/B Assembly: Notes

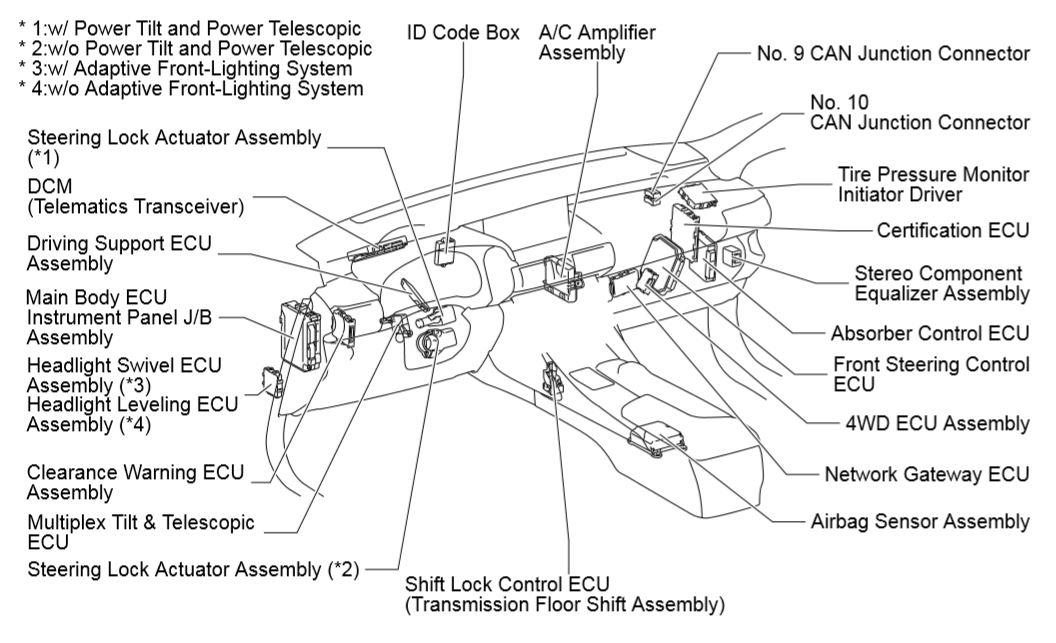

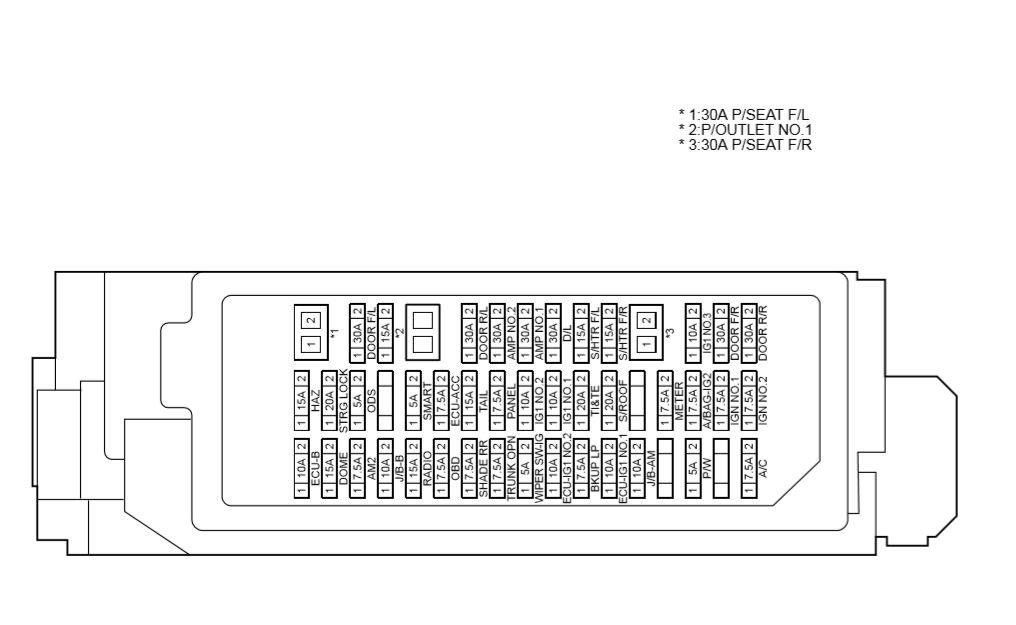

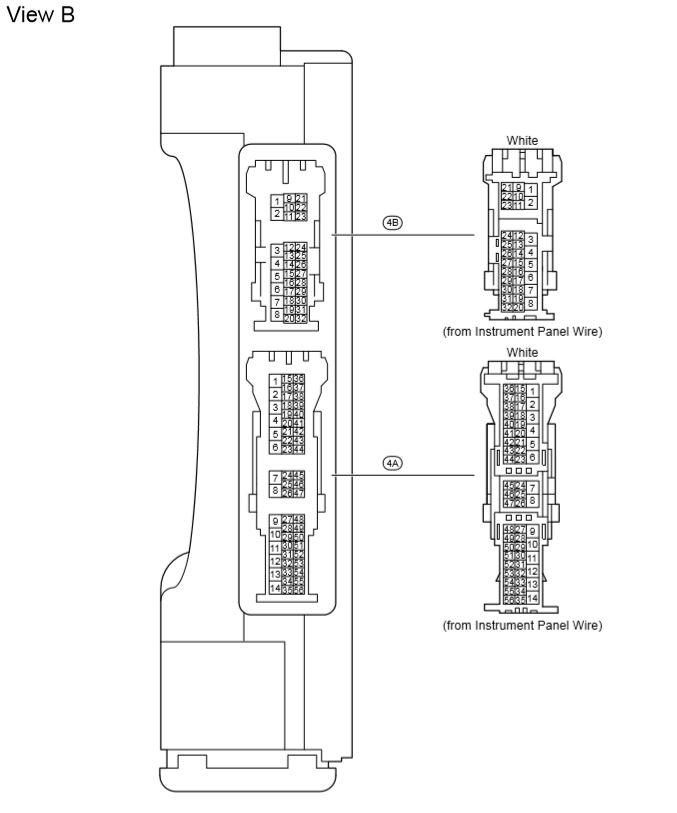

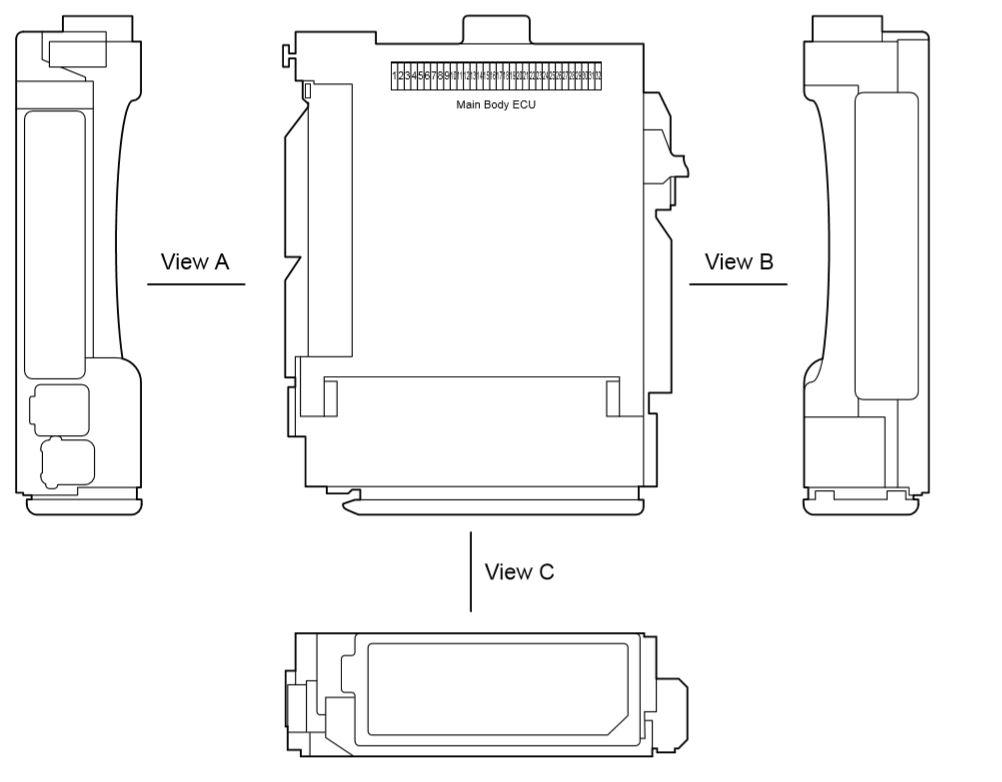

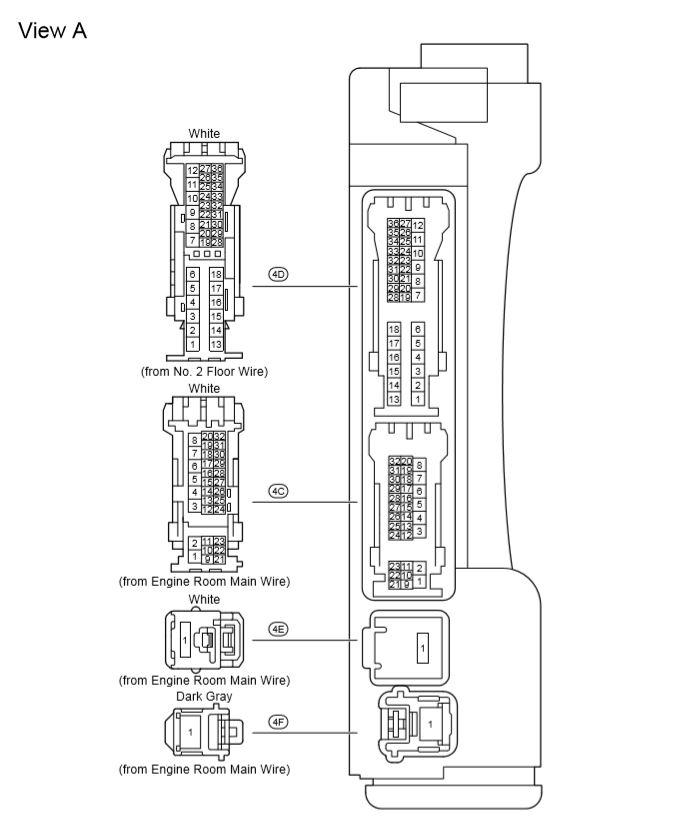

For additional information, refer to Figure.
Instrument Panel J/B Assembly Fuse Identification Legend
| FUSE | |
|---|---|
| 5A | ODS |
| 5A | P/W |
| 5A | SMART |
| 5A | WIPER SW-IG |
| 7.5A | A/BAG-IG2 |
| 7.5A | A/C |
| 7.5A | AM2 |
| 7.5A | BKUP LP |
| 7.5A | ECU-ACC |
| 7.5A | IGN NO. 1 |
| 7.5A | IGN NO. 2 |
| 7.5A | METER |
| 7.5A | OBD |
| 7.5A | PANEL |
| 7.5A | SHADE RR |
| 7.5A | TRUNK OPN |
| 10A | ECU-B |
| 10A | ECU-IG1 NO. 1 |
| 10A | ECU-IG1 NO. 2 |
| 10A | IG1 NO. 1 |
| 10A | IG1 NO. 2 |
| 10A | IG1 NO. 3 |
| 10A | J/B-AM |
| 10A | J/B-B |
| 15A | DOME |
| 15A | HAZ |
| 15A | P/OUTLET NO. 1 |
| 15A | RADIO |
| 15A | S/HTR F/L |
| 15A | S/HTR F/R |
| 15A | TAIL |
| 20A | S/ROOF |
| 20A | STRG LOCK |
| 20A | TI&TE |
| 30A | AMP NO. 1 |
| 30A | AMP NO. 2 |
| 30A | D/L |
| 30A | DOOR F/L |
| 30A | DOOR F/R |
| 30A | DOOR R/L |
| 30A | DOOR R/R |
| 30A | P/SEAT F/L |
| 30A | P/SEAT F/R |
