Instrument Panel J/B Assembly Circuit

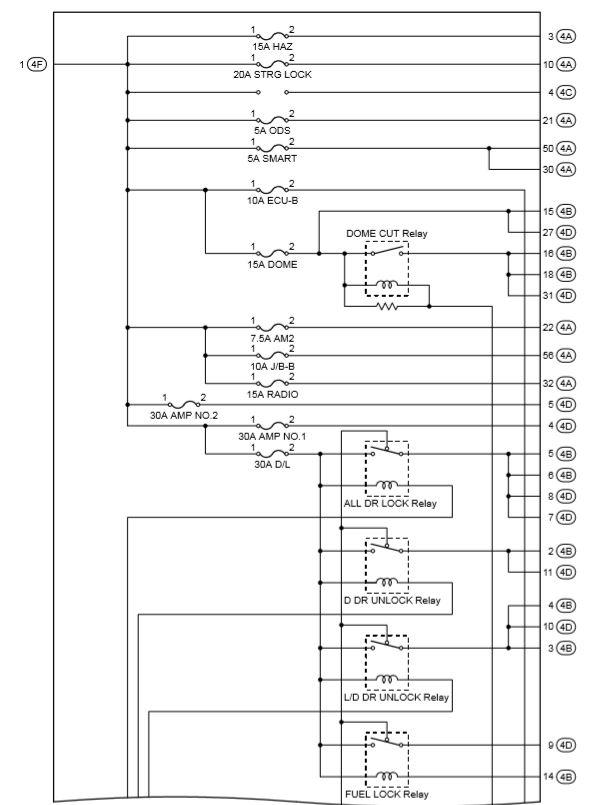

Fig 1: Instrument Panel J/B Assembly Circuit Diagram (1 Of 5) With Relays
G00584325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B ASSEMBLY CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DOME CUT Relay
ALL DR LOCK Relay
D DR UNLOCK Relay
L/D DR UNLOCK Relay
FUEL LOCK Relay

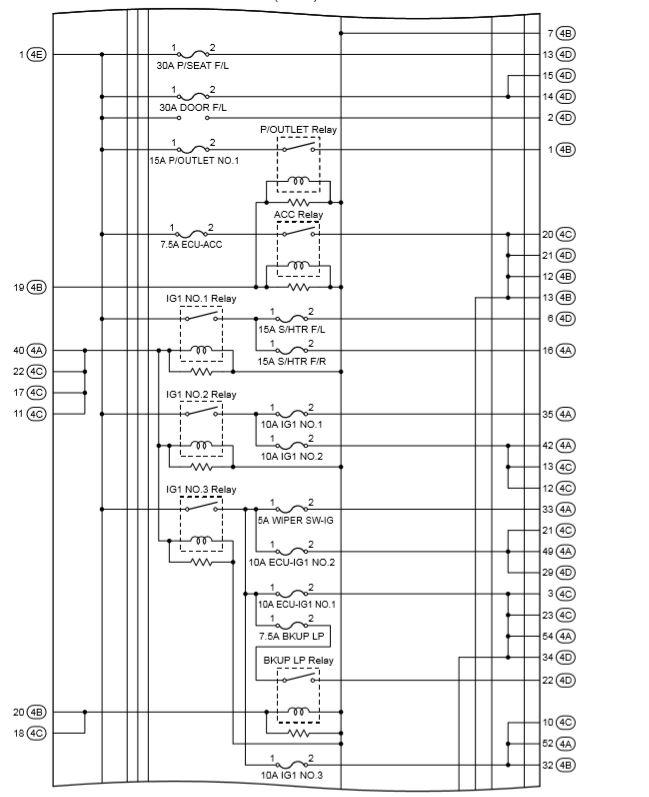

Fig 2: Instrument Panel J/B Assembly Circuit Diagram (2 Of 5) With Relays
G00584326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B ASSEMBLY CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
P/OUTLET Relay
ACC Relay
IG1 NO. 1 Relay
IG1 NO. 2 Relay
IG NO. 3 Relay
BKUP LP Relay

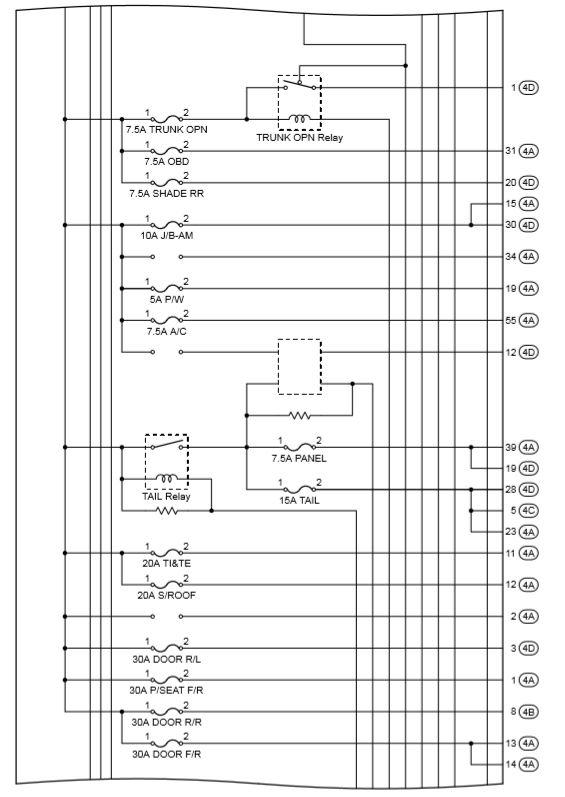

Fig 3: Instrument Panel J/B Assembly Circuit Diagram (3 Of 5) With Relays
G00584327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B ASSEMBLY CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
TRUNK OPN Relay
TAIL Relay

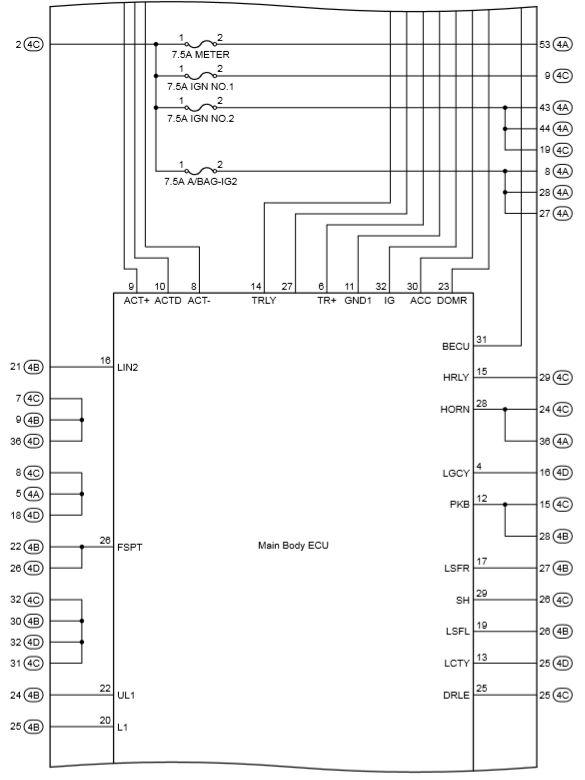

Fig 4: Instrument Panel J/B Assembly Circuit Diagram (4 Of 5)
G00584328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

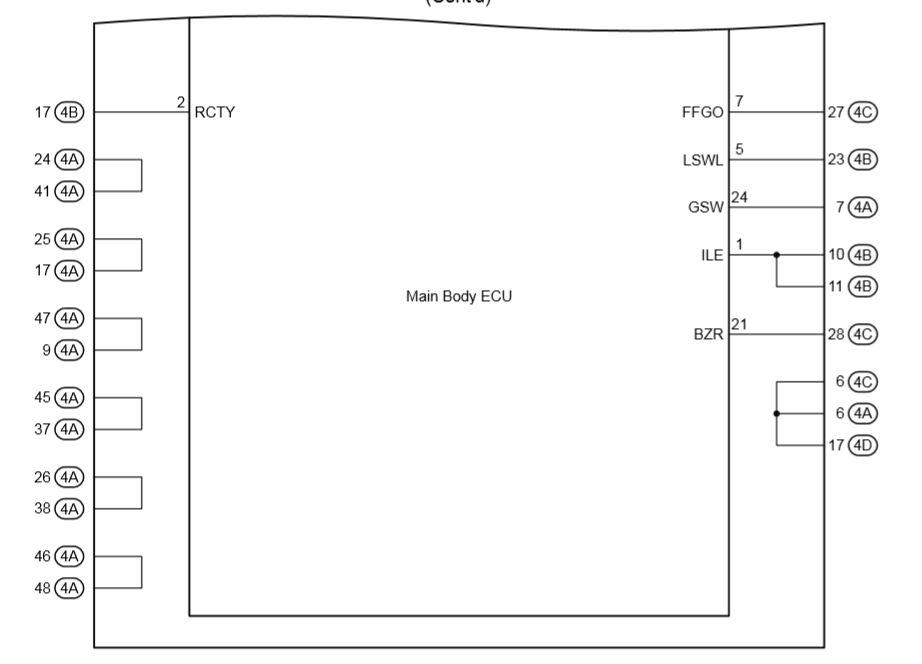

Fig 5: Instrument Panel J/B Assembly Circuit Diagram (5 Of 5)
G00584329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
