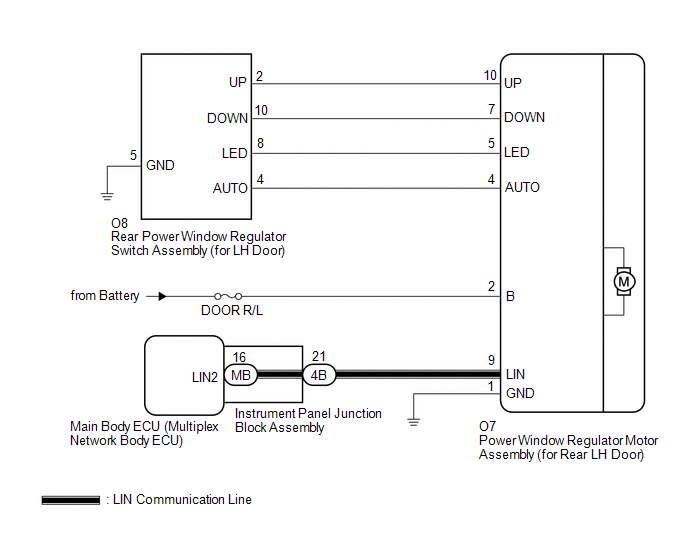

Rear Power Window LH does not Operate with Rear Power Window Switch LH [04/2013 - ]: Wiring Diagram

GTY465244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
