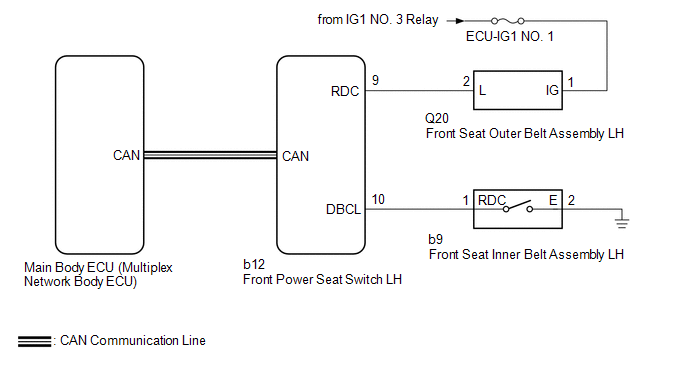

Power Seat Power Easy Access System Function does not Operate [04/2013 - ]: Wiring Diagram

GTY518476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
