Installation [10/2016 - 10/2017]: Procedure

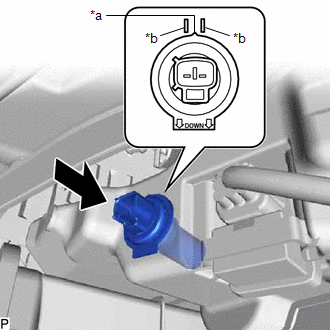

1. Install the level warning switch assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Marking

   NOTE:

   Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

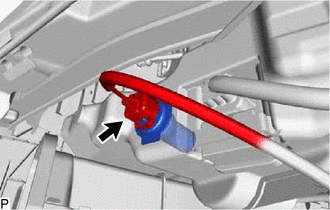

2. Connect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

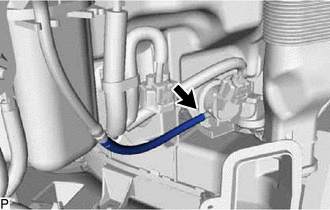

3. Connect the washer hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2

1. Engage the 2 claws.
2. Install the cool air intake duct with the 3 bolts and screw.

for 8AR-FTS:

Refer to PROCEDURE - Step 78

for 2GR-FSE:

Refer to PROCEDURE - Step 105

for Standard:

Refer to INSTALLATION [10/2016 - 09/2020]

for Sport Package:

Refer to INSTALLATION [10/2016 - 09/2020]
