Installation [04/2013 - 08/2015]: Procedure

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY
    1. Install the level warning switch assembly as shown in the illustration.

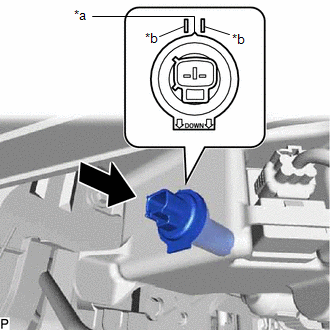

      GTY466193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Marking
      NOTE:

      Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

    2. Connect the connector.

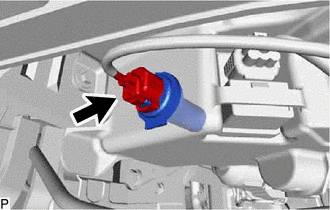

      GTY464741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the washer hose.

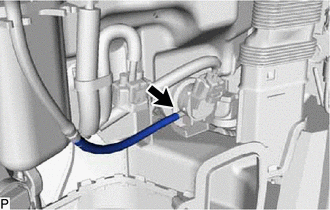

      GTY462835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADD WINDSHIELD WASHER FLUID

    See step  2

  3. INSTALL COOL AIR INTAKE DUCT
    1. Engage the 2 claws.
    2. Install the cool air intake duct with the 3 bolts and screw.
  4. INSTALL ENGINE UNDER COVER

    Refer to PROCEDURE - Step 104

  5. INSTALL FRONT BUMPER ASSEMBLY (for Standard)

    Refer to INSTALLATION [04/2013 - 10/2016]

  6. INSTALL FRONT BUMPER ASSEMBLY (for Sport Package)

    Refer to INSTALLATION [04/2013 - 10/2016]
