Wiper System / Washer System - Service Information
>>
Washer Level Warning Switch
>>
Components [10/2017 - 11/2021]
Components [10/2017 - 11/2021]

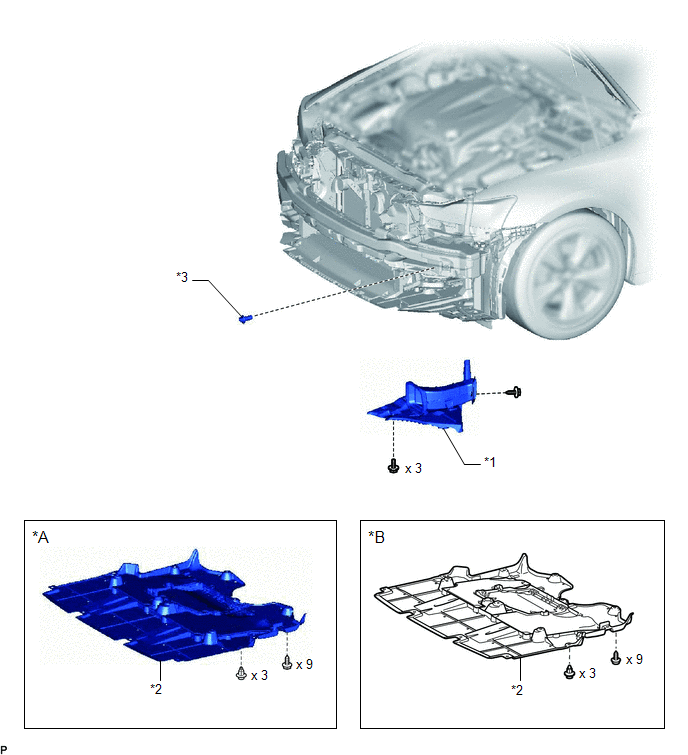

Fig 1: Washer Level Warning Switch Replacement Components [10/2017 - 11/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 8AR-FTS
*B
for 2GR-FKS
*1
COOL AIR INTAKE DUCT
*2
ENGINE UNDER COVER
*3
LEVEL WARNING SWITCH ASSEMBLY
-
-
