Components [04/2013 - 10/2016]

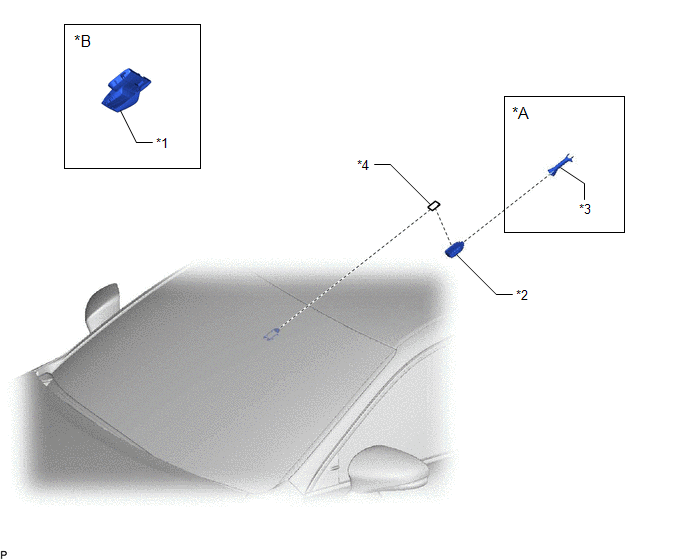

Fig 1: Rain Sensor Replacement Components [04/2013 - 10/2016]
GTY458318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Lane Departure Alert System *B w/ Lane Departure Alert System
*1 LANE DEPARTURE WARNING CAMERA COVER *2 RAIN SENSOR
*3 RAIN SENSOR COVER *4 RAIN SENSOR TAPE
