Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY (for Standard)

    Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE FRONT BUMPER ASSEMBLY (for Sport Package)

    Refer to REMOVAL [04/2013 - 10/2016]

  3. REMOVE HEADLIGHT CLEANER CONTROL RELAY

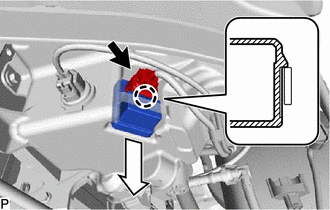

    1. Disconnect the connector.
      GTY470402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.
