Installation [11/2021 - ]: Procedure

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY (except 2UR-GSE)
    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY675691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY (except 2UR-GSE)

    for Standard:

    Refer to INSTALLATION [09/2020 - ]

    for Sport Package:

    Refer to INSTALLATION [09/2020 - ]

  3. INSTALL HEADLIGHT CLEANER CONTROL RELAY (for 2UR-GSE)

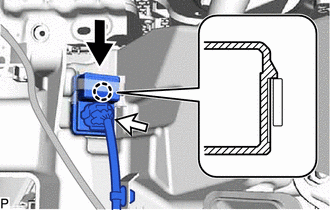

    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY1083554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  4. INSTALL FRONT FENDER LINER LH (for 2UR-GSE)

    See step  3

  5. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (for 2UR-GSE)

    See step  5

  6. INSTALL FRONT WHEEL LH (for 2UR-GSE)

    Refer to PROCEDURE - Step 1 [09/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
