Installation [04/2013 - 10/2016]: Procedure

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY

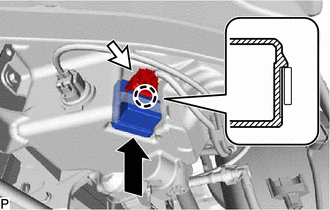

    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY464740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY (for Standard)

    Refer to INSTALLATION [04/2013 - 10/2016]

  3. INSTALL FRONT BUMPER ASSEMBLY (for Sport Package)

    Refer to INSTALLATION [04/2013 - 10/2016]
