Wiper System / Washer System - Service Information
>>
Headlight Cleaner Control Relay
>>
Components [11/2021 - ]
Components [11/2021 - ]

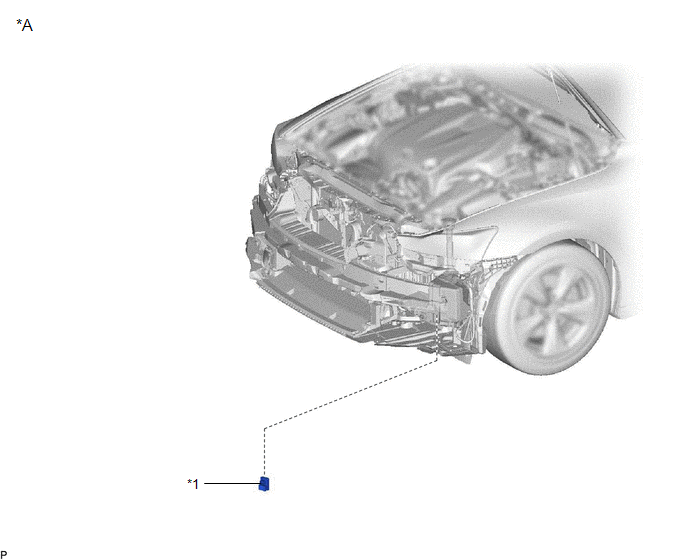

Fig 1: Headlight Cleaner Control Relay Replacement Components [11/2021 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
except 2UR-GSE
-
-
*1
HEADLIGHT CLEANER CONTROL RELAY
-
-

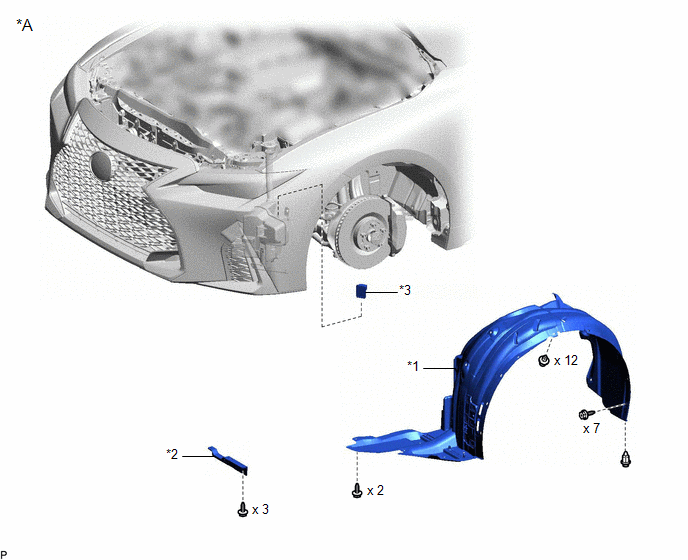

Fig 2: Headlight Cleaner Control Relay Replacement Components [11/2021 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 2UR-GSE
-
-
*1
FRONT FENDER LINER LH
*2
FRONT WHEEL OPENING EXTENSION PAD LH
*3
HEADLIGHT CLEANER CONTROL RELAY
-
-
