Components [04/2013 - 09/2020]

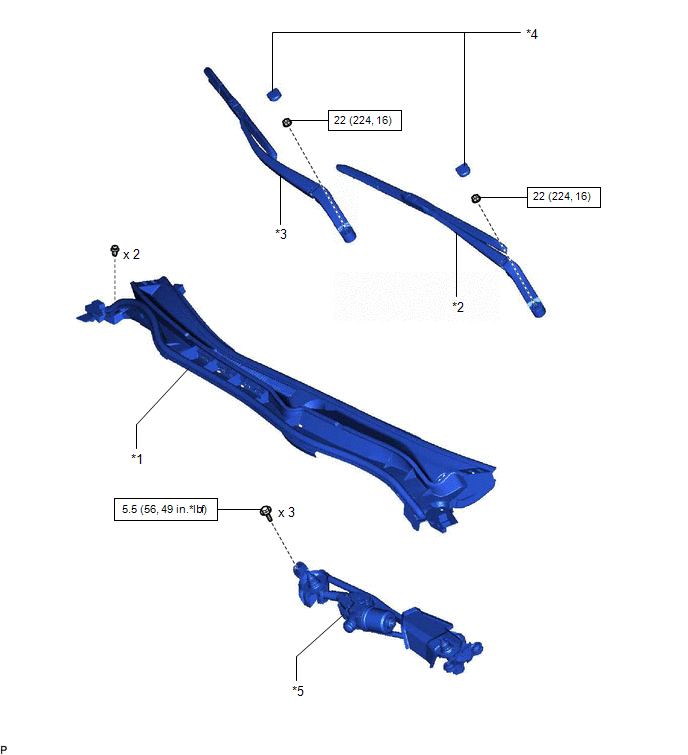

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications [04/2013 - 09/2020] (1 Of 2)
| *1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY | *2 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
| *3 | FRONT WIPER ARM AND BLADE ASSEMBLY RH | *4 | FRONT WIPER ARM HEAD CAP |
| *5 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

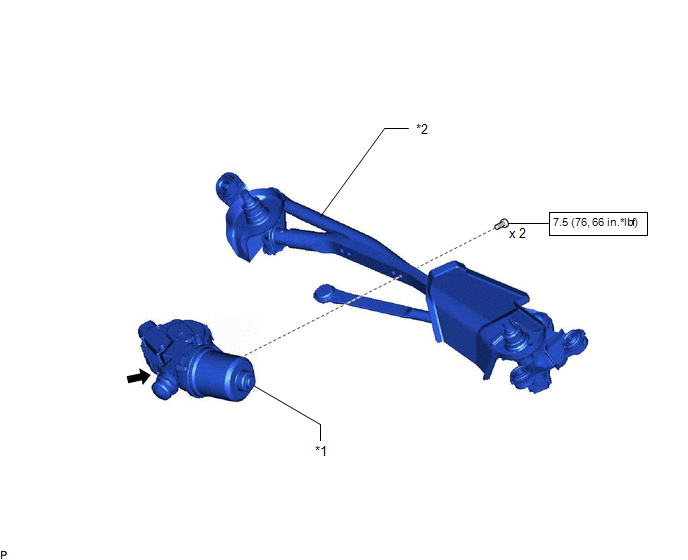

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications [04/2013 - 09/2020] (2 Of 2)
| *1 | WINDSHIELD WIPER MOTOR ASSEMBLY | *2 | WINDSHIELD WIPER LINK ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | MP grease |
