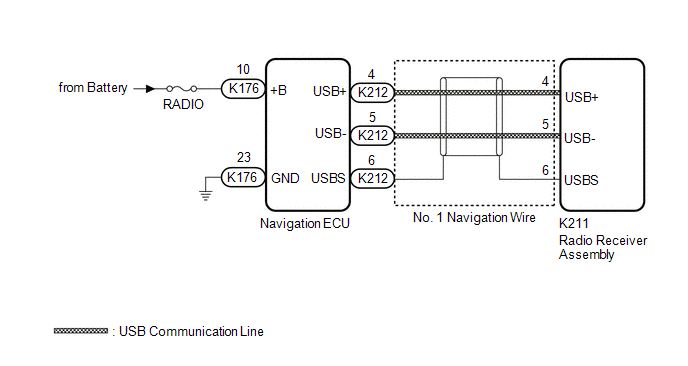

DTC B1543: Extension Module Disconnected 2 [09/2020 - ]: Wiring Diagram

GTY970099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
