Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

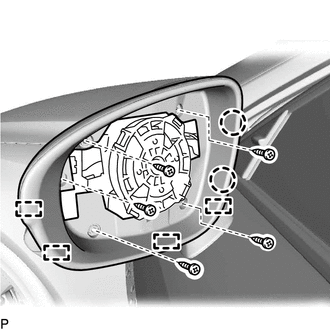

    1. Remove the 5 screws.
      GTY458074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 4 guides to remove the visor assembly.

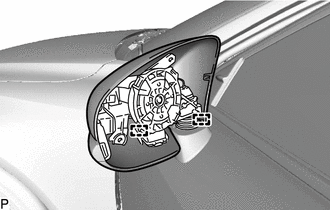

    3. Disengage the 2 guides.
      GTY468952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector to remove the No. 2 outer mirror cover with side turn signal light assembly.
      GTY468413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

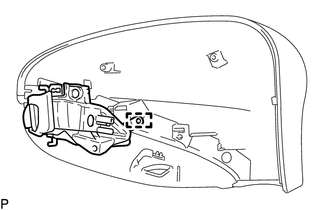

    5. Disengage the guide to remove the side turn signal light assembly from the No. 2 outer mirror cover.
      GTY415762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
