Installation [09/2020 - ]: Procedure

  1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. Engage the 2 guides.
    2. Install the visor cover B to the side turn signal light assembly with the screw.
    3. w/ Panoramic View Monitor System:

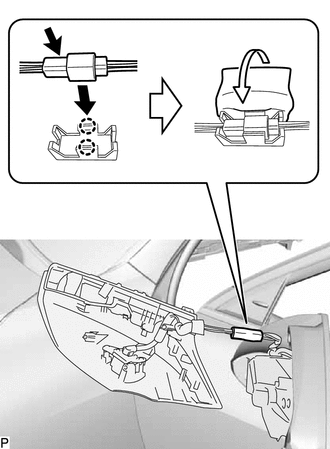

      1. Connect the side television camera connector.
        GTY967022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the 2 claws as shown in the illustration to install the camera connector clamp.
      3. Paste a new outer mirror tape around the camera connector clamp.
      4. Engage the clamp.

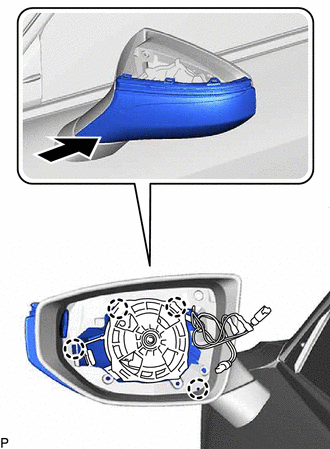

    4. Engage the 4 claws to install the visor cover B as shown in the illustration.
      GTY967140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

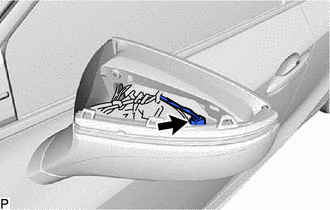

    5. Connect the connector.
      GTY967138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

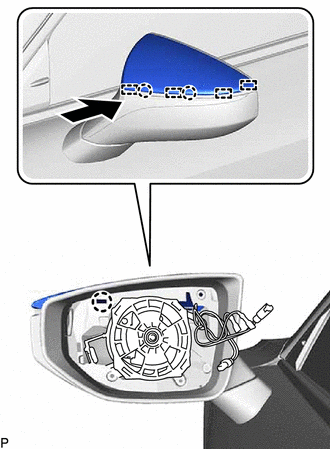

    6. Engage the 4 guides and 3 claws to install the visor cover A as shown in the illustration.
      GTY967136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the No. 2 outer mirror cover with the 4 screws.
  2. INSTALL OUTER MIRROR

    Refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  3. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

    Refer to CALIBRATION [09/2020 - ]
