Lighting System (Ext) - Service Information
>>
Side Turn Signal Light Assembly
>>
Components [09/2020 - ]
Components [09/2020 - ]

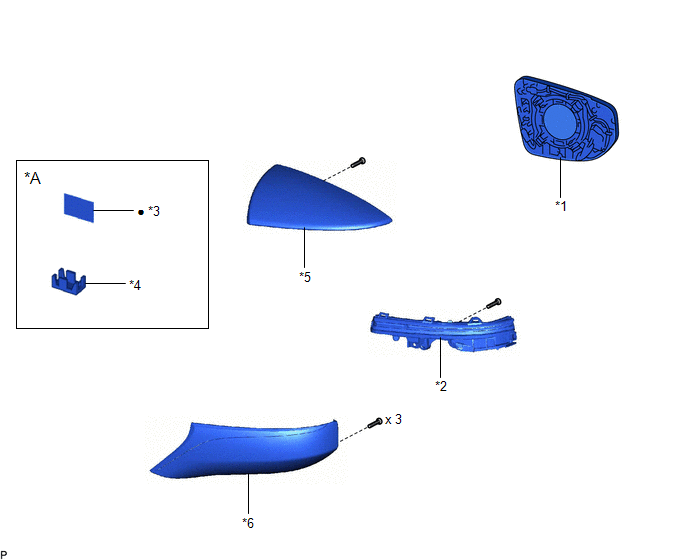

Fig 1: Side Turn Signal Light Assembly Replacement Components [09/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/ Panoramic View Monitor System
-
-
*1
OUTER MIRROR
*2
SIDE TURN SIGNAL LIGHT ASSEMBLY
*3
OUTER MIRROR TAPE
*4
CAMERA CONNECTOR CLAMP
*5
VISOR COVER A
*6
VISOR COVER B
•
Non-reusable part
-
-
