Disassembly [04/2013 - 10/2016]: Procedure

  1. REMOVE BACK-UP LIGHT BULB
    1. Type A:

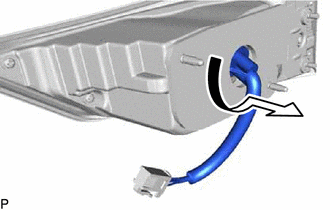

      GTY469661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      2. Remove the back-up light bulb from the rear light socket and wire.
    2. Type B:

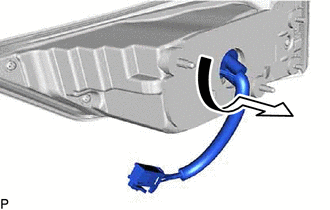

      GTY515118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      2. Remove the back-up light bulb from the rear light socket and wire.
  2. REMOVE REAR LIGHT GASKET
    1. Type A:
      GTY461336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear light gasket.
        NOTE:
        • Be sure to remove all traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
    2. Type B:
      GTY521374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear light gasket.
        NOTE:
        • Be sure to remove all traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
  3. REMOVE REAR LIGHT SOCKET AND WIRE
    1. Disconnect the connector to remove the rear light socket and wire.
      GTY469660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR LIGHT GASKET
    1. Type A:
      GTY461342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 rear light gaskets.
        NOTE:
        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
    2. Type B:
      GTY515113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 rear light gaskets.
        NOTE:
        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
