Components [10/2016 - 09/2020]

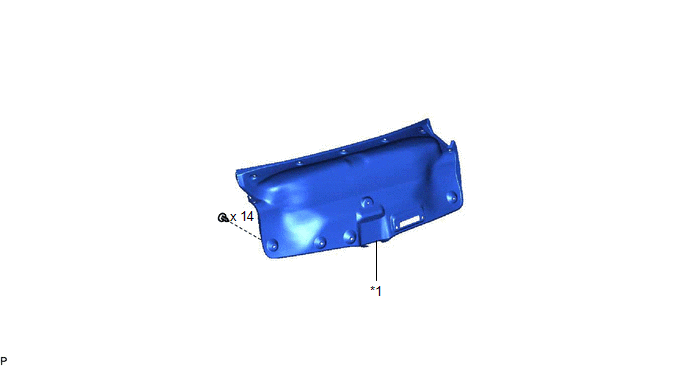

Fig 1: Rear Light Assembly Replacement Components [10/2016 - 09/2020] (1 Of 2)
GTY632114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT DOOR COVER - -

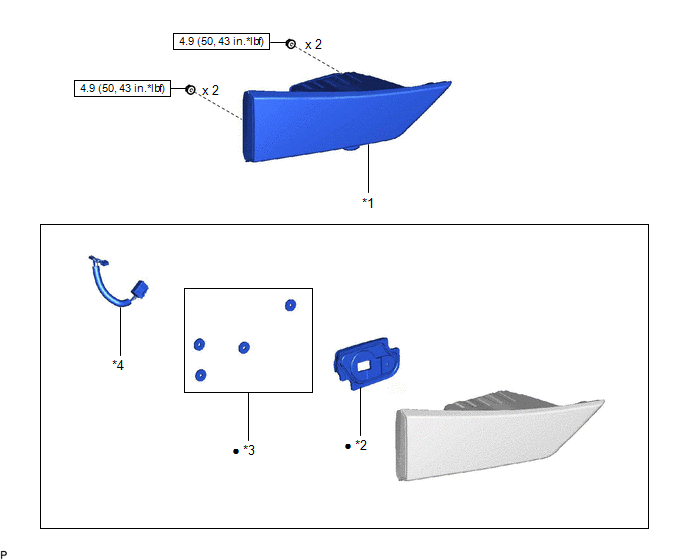

Fig 2: Rear Light Assembly Replacement Components With Torque Specifications [10/2016 - 09/2020] (2 Of 2)
GTY619761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR LIGHT ASSEMBLY *2 REAR LIGHT GASKET
*3 REAR LIGHT GASKET *4 REAR LIGHT SOCKET AND WIRE
N*m (kgf*cm, ft.*lbf): Specified torque Non-reusable part
