Components [09/2020 - ]

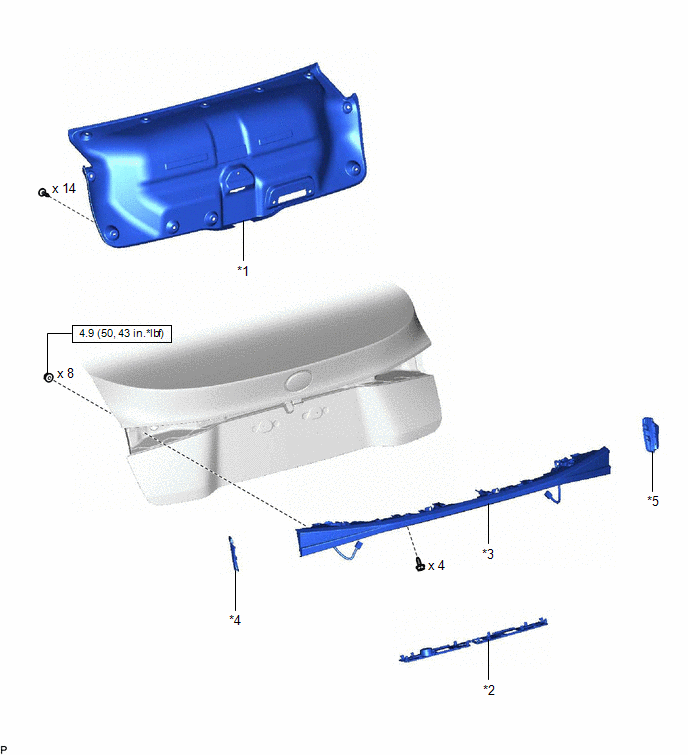

Fig 1: Rear Light Assembly Replacement Components With Torque Specifications [09/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE COMPARTMENT DOOR COVER	*2	NO. 3 OUTSIDE LUGGAGE COMPARTMENT DOOR GARNISH
*3	REAR LIGHT ASSEMBLY	*4	REAR LIGHT COVER LH
*5	REAR LIGHT COVER RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

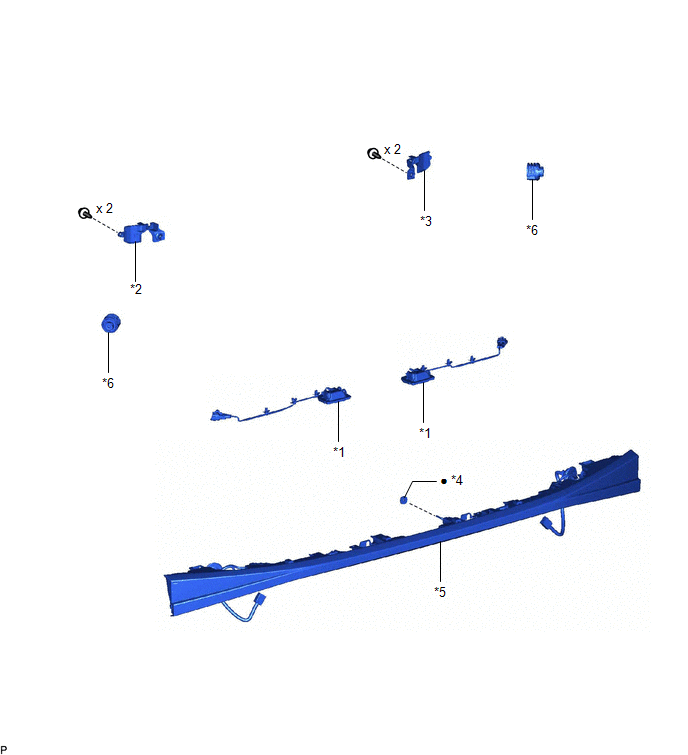

Fig 2: Rear Light Assembly Replacement Components [09/2020 - ] (2 Of 2)

*1	LICENSE PLATE LIGHT ASSEMBLY	*2	REAR LIGHT BRACKET LH
*3	REAR LIGHT BRACKET RH	*4	REAR LIGHT GASKET
*5	REAR LIGHT LENS AND BODY	*6	TAIL LIGHT LED
•	Non-reusable part	-	-
