Installation [04/2013 - 08/2015]: Procedure

  1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Engage the grommet.
    2. Connect the connector to install the rear combination light socket and wire sub-assembly.
  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 5

  3. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 4

  4. INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 6

  5. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. INSTALL NO. 2 ROOM PARTITION COVER (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 11

  7. INSTALL REAR SEAT SUB FLOOR PANEL (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 13

  8. INSTALL REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    Refer to INSTALLATION [04/2013 - 10/2016]

  9. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Refer to INSTALLATION [04/2013 - 08/2015]

  10. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    for Fixed Seat Type: Refer to PROCEDURE - Step 13

    for Fold Down Seat Type: Refer to PROCEDURE - Step 14

  11. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 15

  12. INSTALL DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 16

  13. INSTALL DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 17

  14. INSTALL SPARE WHEEL COVER TRAY LH

    Refer to PROCEDURE - Step 19

  15. INSTALL SPARE WHEEL COVER TRAY RH

    Refer to PROCEDURE - Step 18

  16. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 20

  17. INSTALL REAR BUMPER UPPER RETAINER
    1. Engage the guide.
    2. Install the rear bumper upper retainer with the screw.
    3. Engage the clamp.
  18. INSTALL REAR BUMPER ASSEMBLY

    Refer to INSTALLATION [04/2013 - 10/2016]

  19. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly.
  20. INSTALL REAR COMBINATION LIGHT ASSEMBLY
    1. Connect the connector.

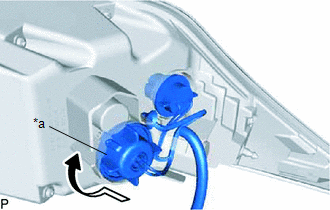

    2. Turn the cap as shown in the illustration to connect it.
      GTY464806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cap

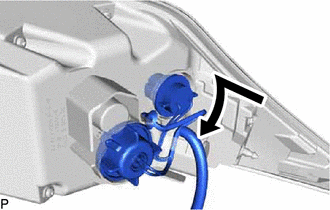

    3. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to connect them as a unit.
      GTY461356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

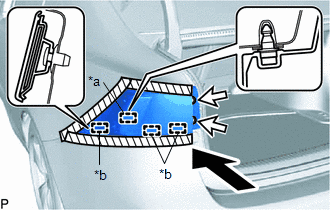

    4. Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.
      GTY467948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    5. Install the rear combination light assembly with the 2 screws.

      Torque: 2.2 N*m (22 kgf*cm, 19 in.*lbf)

    6. Remove the protective tape.
  21. INSTALL REAR LIGHT COVER

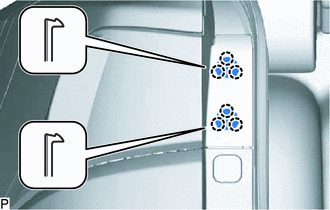

    1. Engage the 6 claws to install the 2 rear light covers.
      GTY467796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
