Installation [04/2013 - 09/2020]: Procedure

  1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
    1. Connect the connector.

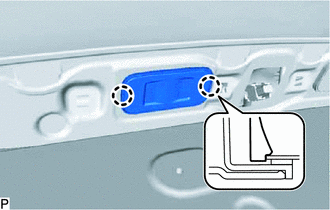

    2. Engage the 2 claws to install the license plate light assembly.
      GTY456700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LUGGAGE OUTSIDE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY

    Refer to INSTALLATION [04/2013 - 09/2020]
