Components [04/2013 - 09/2020]

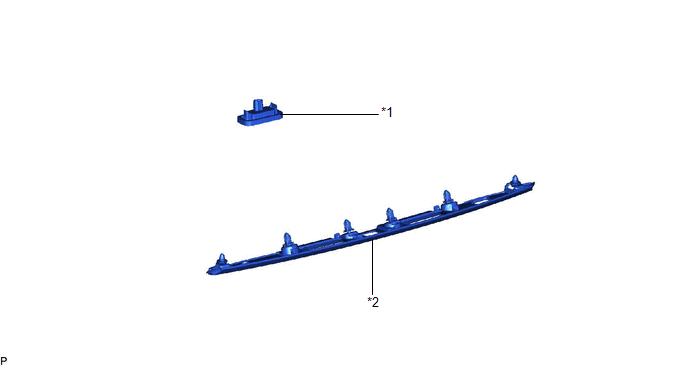

Fig 1: License Plate Light Assembly Replacement Components [04/2013 - 09/2020]
GTY462367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LICENSE PLATE LIGHT ASSEMBLY *2 LUGGAGE OUTSIDE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY
