Components [04/2013 - ]

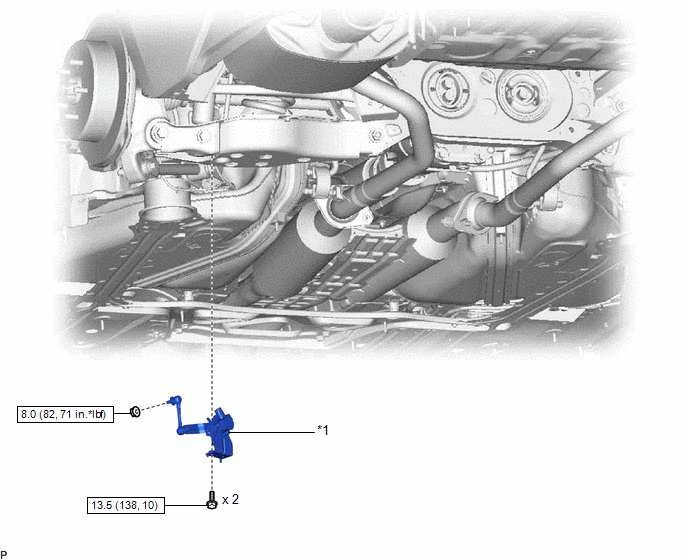

Fig 1: Height Control Sensor Replacement Components With Torque Specifications
GTY969826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
