Components [10/2016 - 09/2018]

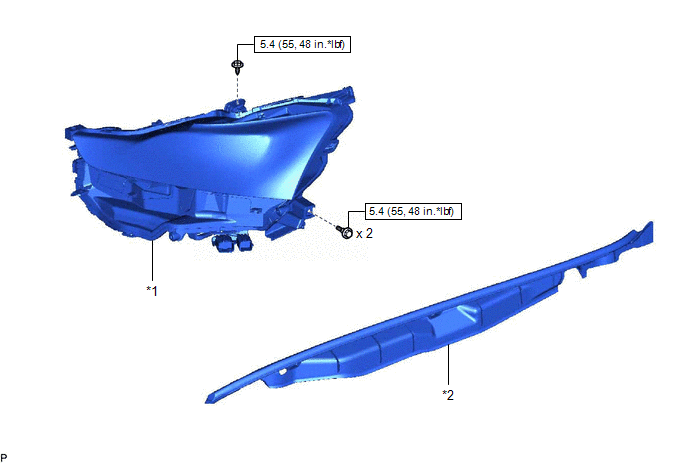

Fig 1: Headlight Assembly Replacement Components With Torque Specifications [10/2016 - 09/2018] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY	*2	UPPER FRONT FENDER PROTECTOR
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

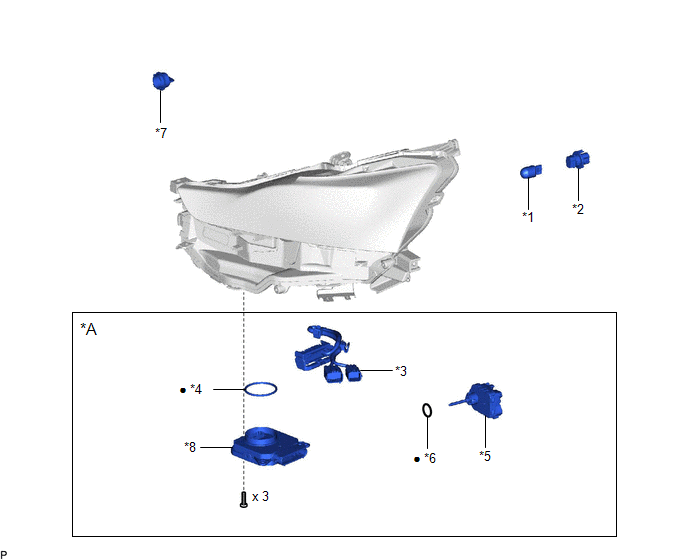

Fig 2: Headlight Assembly Replacement Components [10/2016 - 09/2018] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o AFS	-	-
*1	FRONT TURN SIGNAL LIGHT BULB	*2	FRONT TURN SIGNAL LIGHT SOCKET
*3	HEADLIGHT CORD	*4	HEADLIGHT GASKET
*5	HEADLIGHT LEVELING MOTOR	*6	HEADLIGHT LEVELING MOTOR BASE PACKING
*7	NO. 1 HEADLIGHT BACK COVER	*8	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY
•	Non-reusable part	-	-

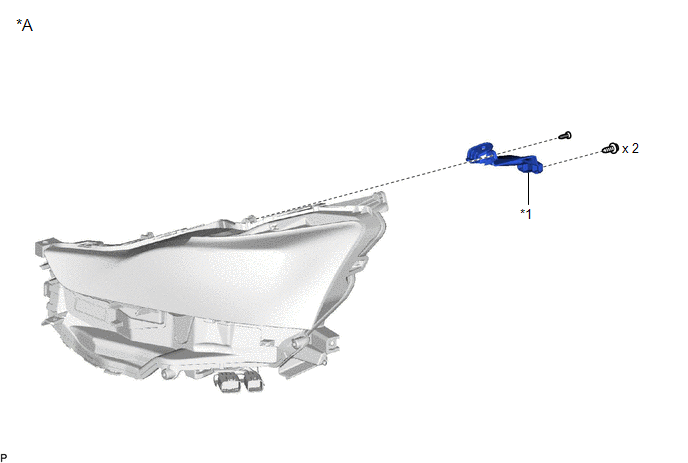

Fig 3: Headlight Assembly Replacement Components [10/2016 - 09/2018] (3 Of 3)

*A	Bracket for Repair	-	-
*1	UPPER HEADLIGHT PROTECTOR RETAINER	-	-
