Installation [04/2013 - 10/2016]: Procedure

  1. INSTALL FOG LIGHT ASSEMBLY
    1. Engage the 2 guides to temporarily install the fog light assembly.
    2. Install the fog light assembly with the screw.
  2. INSTALL AIR INTAKE DUCT
    1. Engage the guide and 2 claws.
    2. Install the clip.
    3. Install the 2 screws.

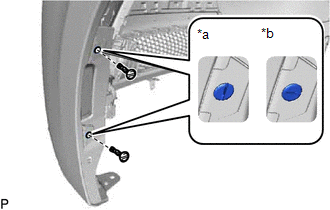

    4. Install the intake duct with the 2 pin hold clips as shown in the illustration.
      NOTE:

      Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.

      GTY467700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
    5. Engage each clamp.
  3. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [04/2013 - 10/2016]
