Components [04/2013 - 06/2014]

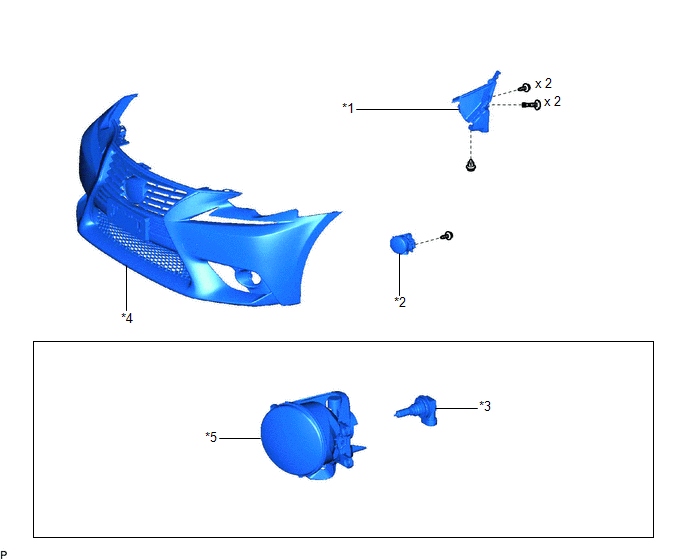

Fig 1: Fog Light Assembly Replacement Components [04/2013 - 06/2014]
GTY458585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR INTAKE DUCT *2 FOG LIGHT ASSEMBLY
*3 FOG LIGHT BULB *4 FRONT BUMPER ASSEMBLY
*5 FOG LIGHT UNIT - -
