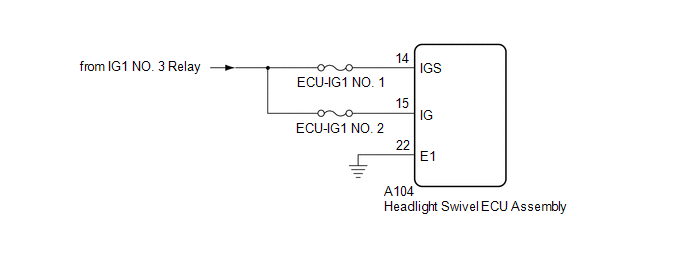

ECU Power Source Circuit [10/2016 - 09/2020]: Wiring Diagram

GTY679961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
