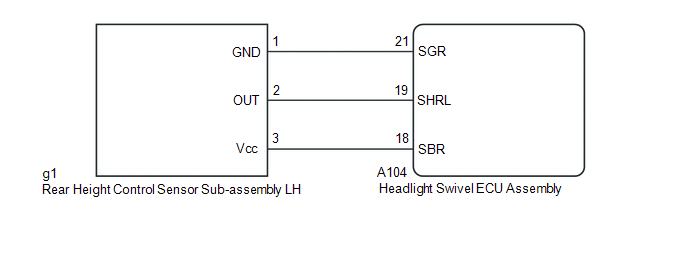

DTC B2416: Height Control Sensor; DTC B241A: Rear Height Control Sensor [10/2016 - 09/2020]: Wiring Diagram

GTY664084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
