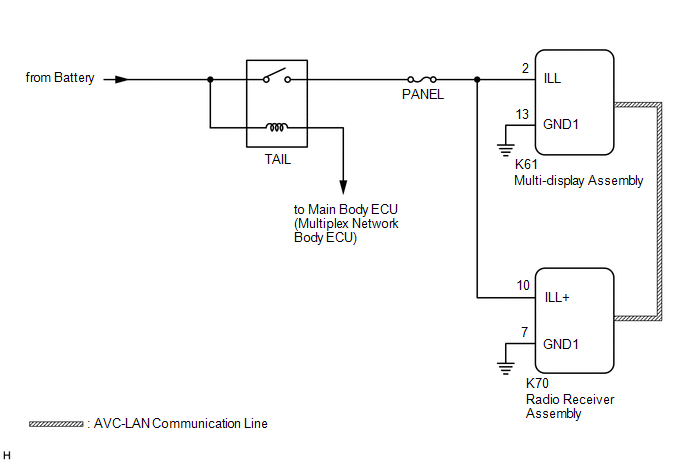

Display does not Dim when Light Control Switch is Turned ON [04/2013 - 09/2020]: Wiring Diagram

GTY464357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
