Power Source Circuit [10/2016 - 09/2020]: Procedure

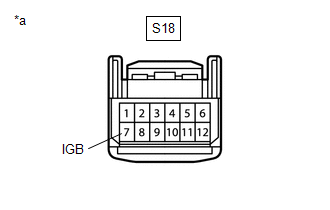

1. Disconnect the S18 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   S18-7 (IGB) - Body ground	Engine switch on (IG)	11 to 14 V

4. Turn the engine switch off.
5. Connect the S18 forward recognition camera connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

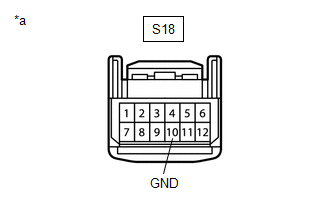

1. Disconnect the S18 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   S18-10 (GND) - Body ground	Always	Below 1 Ω

3. Connect the S18 forward recognition camera connector.

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [10/2016 - 10/2017]  , or refer to  PROBLEM SYMPTOMS TABLE [10/2017 - 09/2020]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
