DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [06/2014 - 08/2015]: Wiring Diagram

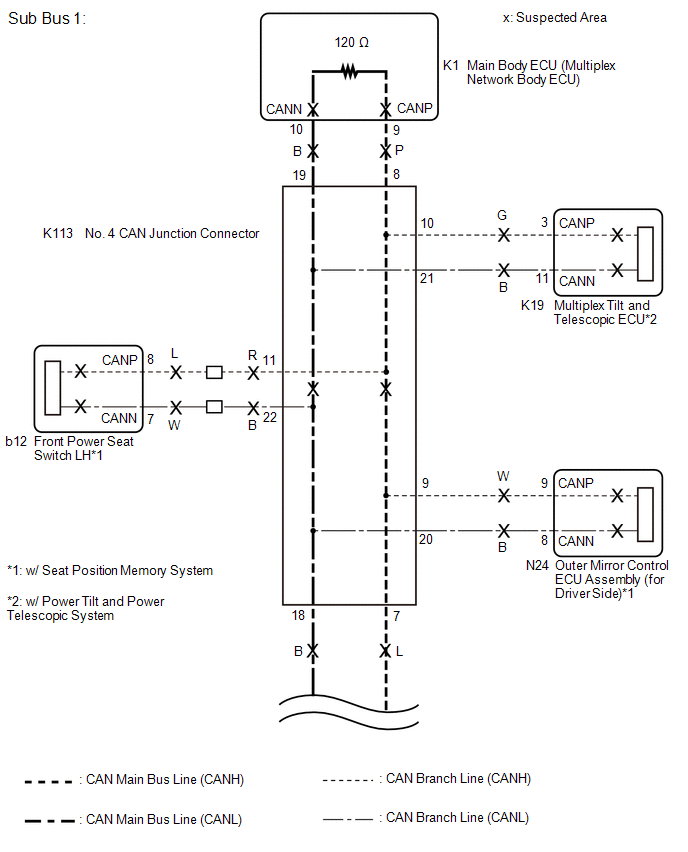

GTY503246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

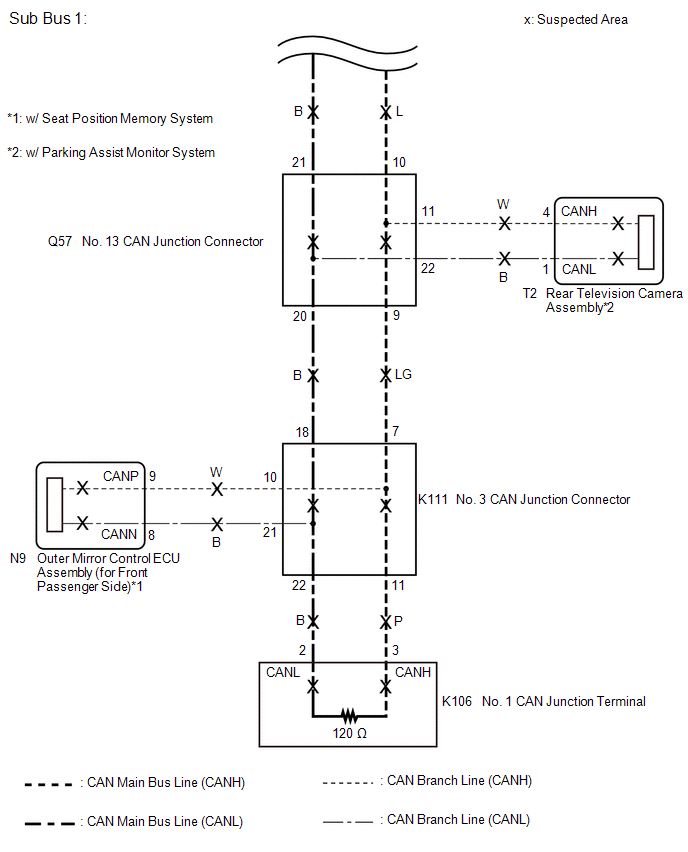

GTY508960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
