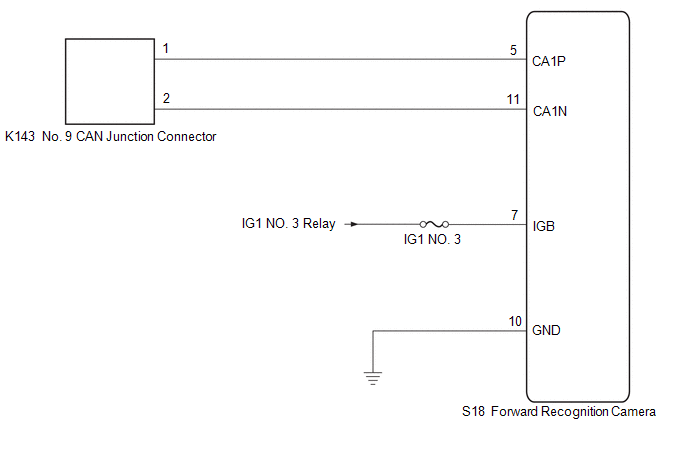

Front Camera Module Communication Stop Mode [09/2020 - ]: Wiring Diagram

GTY969666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
