Open in Bus 5 Main Bus Line [10/2017 - 09/2020]: Wiring Diagram

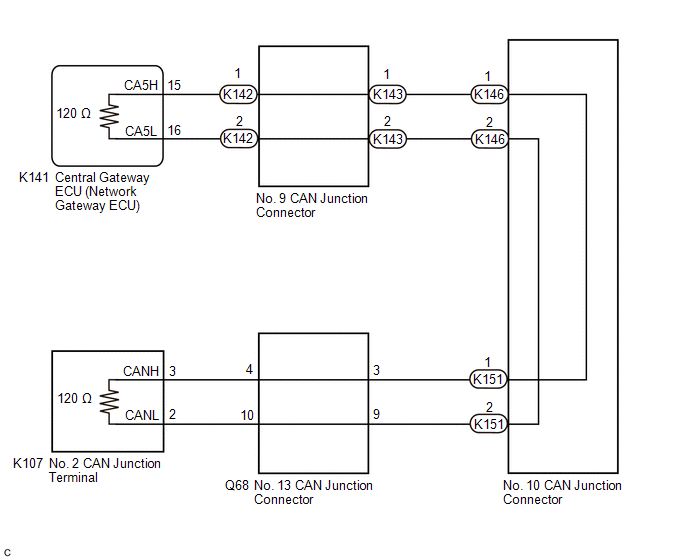

w/ No. 10 CAN Junction Connector:

GTY795343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

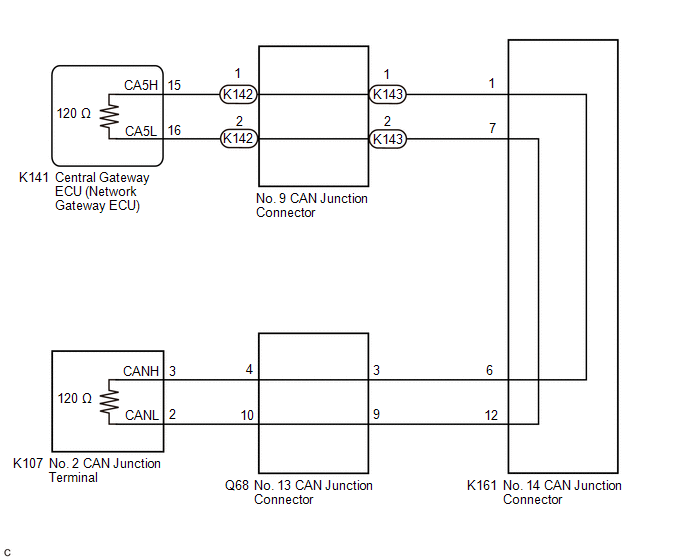

w/ No. 14 CAN Junction Connector:

GTY814036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
