Open in CAN Main Bus Line [04/2013 - 08/2015]: Procedure

  1. CHECK FOR OPEN IN CAN BUS LINES (DLC3 BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

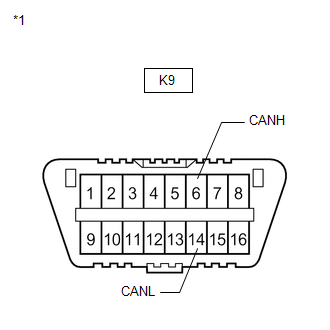

      GTY468550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3

      Standard Resistance

      Tester Connection Condition Specified Condition
      K9-6 (CANH) - K9-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      NOTE:

      When the measured value is 133 Ω or higher and a CAN communication system DTC is output, there may be a fault besides disconnection of the DLC3 branch line. For that reason, troubleshooting should be performed again from How to Proceed with Troubleshooting after repairing the trouble area.

      Refer to HOW TO PROCEED WITH TROUBLESHOOTING [04/2013 - 10/2016]

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE CONNECTED TO DLC3

    Result:

    OK

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY - NO. 1 CAN JUNCTION CONNECTOR)
    1. Disconnect the K3 combination meter assembly connector.

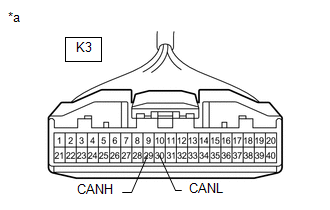

      GTY512225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Combination Meter Assembly)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K3-29 (CANH) - K3-30 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [04/2013 - 10/2016]

    Result:

    NG

    See step  3

  3. CHECK FOR OPEN IN CAN BUS LINES (ECM - NO. 2 CAN JUNCTION CONNECTOR)
    1. Reconnect the K3 combination meter assembly connector.
    2. Disconnect the A77 ECM connector.

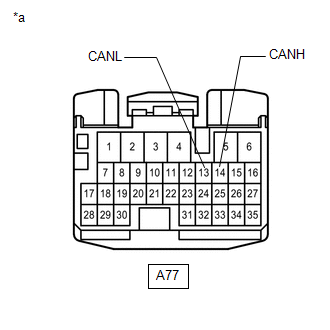

      GTY469471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A77-14 (CANH) - A77-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result Proceed to
      OK (for 2GR-FSE engine) A
      OK (for 4GR-FSE engine) B
      NG C

    Result:

    A

    REPLACE ECM. Refer to  REMOVAL [04/2013 - 10/2017]

    Result:

    B

    REPLACE ECM. Refer to  REMOVAL [04/2013 - 08/2015]

    Result:

    C

    See step  4

  4. CHECK FOR OPEN IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR)
    1. Reconnect the A77 ECM connector.
    2. Disconnect the K109 No. 1 CAN junction connector.
      GTY456659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 CAN Junction Connector)
      *b to No. 2 CAN Junction Connector
      *c to Combination Meter Assembly
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      K109-1 (CANH) - K109-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 2 CAN junction connector
      K109-2 (CANH) - K109-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Combination meter assembly

      Result

      Result Proceed to
      OK A
      NG (Combination meter assembly main line) B
      NG (No. 2 CAN junction connector main line) C

    Result:

    A

    REPLACE NO. 1 CAN JUNCTION CONNECTOR

    Result:

    B

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 1 CAN JUNCTION CONNECTOR)

    Result:

    C

    See step  5

  5. CHECK FOR OPEN IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR)
    1. Reconnect the K109 No. 1 CAN junction connector.
    2. Disconnect the K110 No. 2 CAN junction connector.

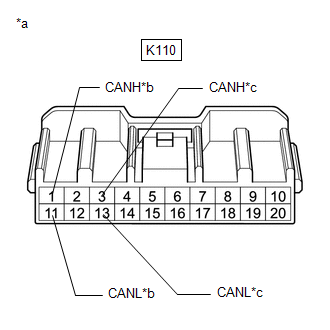

      GTY456660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 CAN Junction Connector)
      *b to No. 1 CAN Junction Connector
      *c to ECM
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      K110-1 (CANH) - K110-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 1 CAN junction connector
      K110-3 (CANH) - K110-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω ECM

      Result

      Result Proceed to
      OK A
      NG (ECM main line) B
      NG (No. 1 CAN junction connector main line) C

    Result:

    A

    REPLACE NO. 2 CAN JUNCTION CONNECTOR

    Result:

    B

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (ECM - NO. 2 CAN JUNCTION CONNECTOR)

    Result:

    C

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
