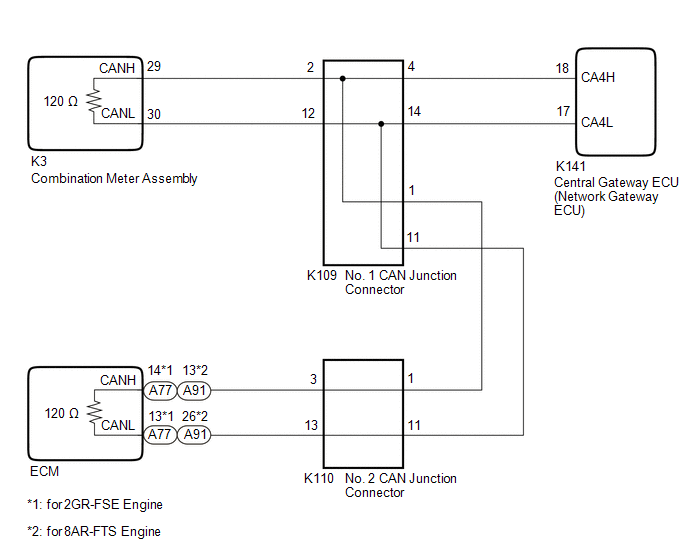

Open in Bus 2 Main Bus Line [10/2016 - 10/2017]: Wiring Diagram

GTY676456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
