Driving Support ECU Communication Stop Mode [10/2016 - 09/2018]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (DRIVING SUPPORT ECU ASSEMBLY BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the M2 driving support ECU assembly connector.

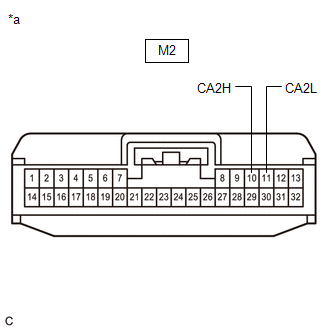

*a Front view of wire harness connector
(to Driving Support ECU Assembly) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M2-10 (CA2H) - M2-11 (CA2L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (DRIVING SUPPORT ECU ASSEMBLY)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.

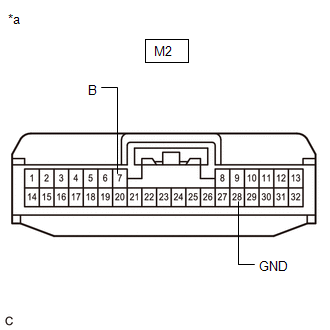

*a Front view of wire harness connector
(to Driving Support ECU Assembly)Standard Resistance
Tester Connection Condition Specified Condition M2-28 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition M2-7 (B) - Body ground Engine switch on (IG) 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE DRIVING SUPPORT ECU ASSEMBLY. Refer to REMOVAL [04/2013 - 09/2020]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
