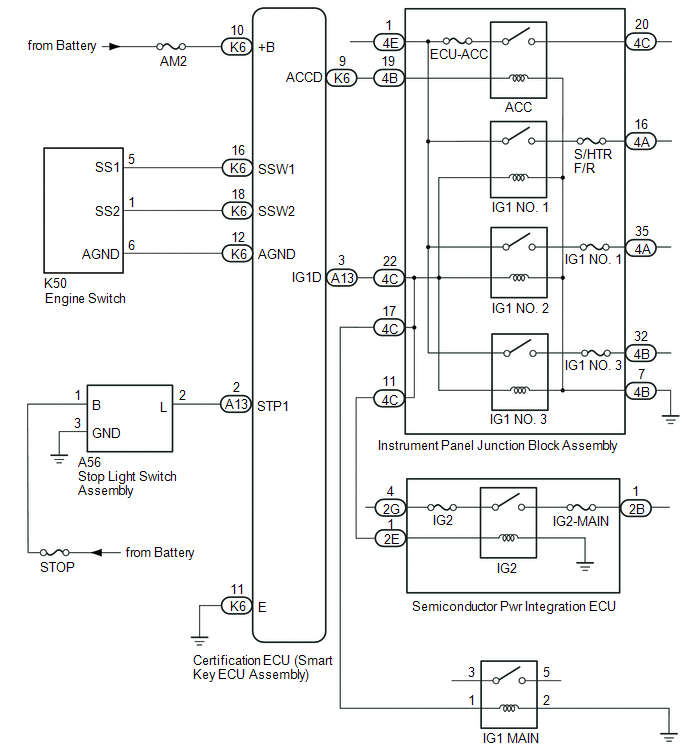

Power Source Mode does not Change to ON (IG and ACC) [04/2013 - 08/2015]: Wiring Diagram

GTY468412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
