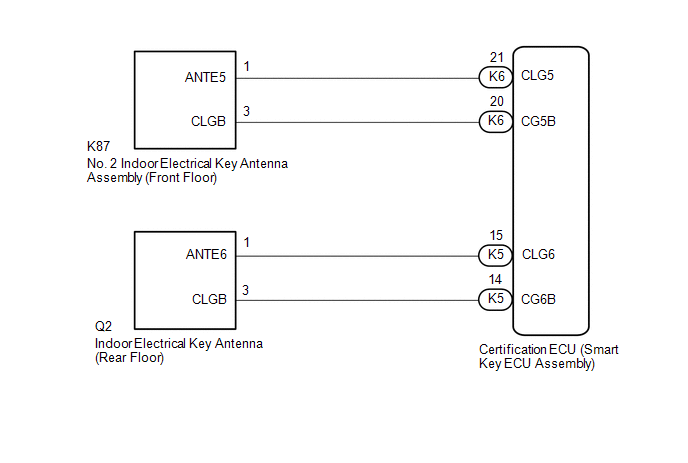

Room Oscillator does not Recognize Key [04/2013 - 09/2022]: Wiring Diagram

GTY469955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
