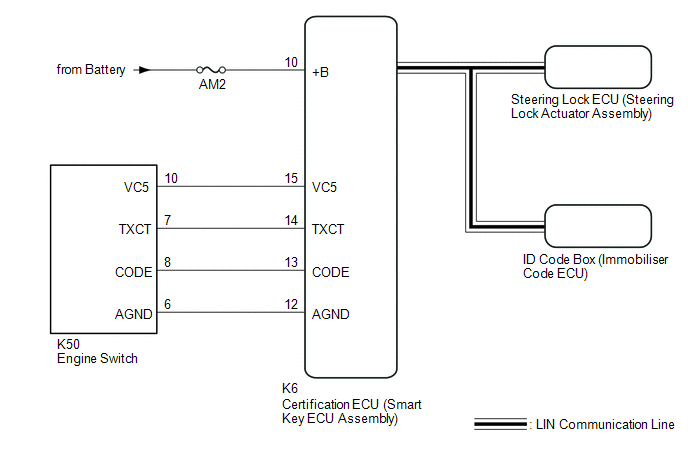

New Key cannot be Registered [04/2013 - 09/2022]: Wiring Diagram

GTY468410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
