Components [04/2013 - ]

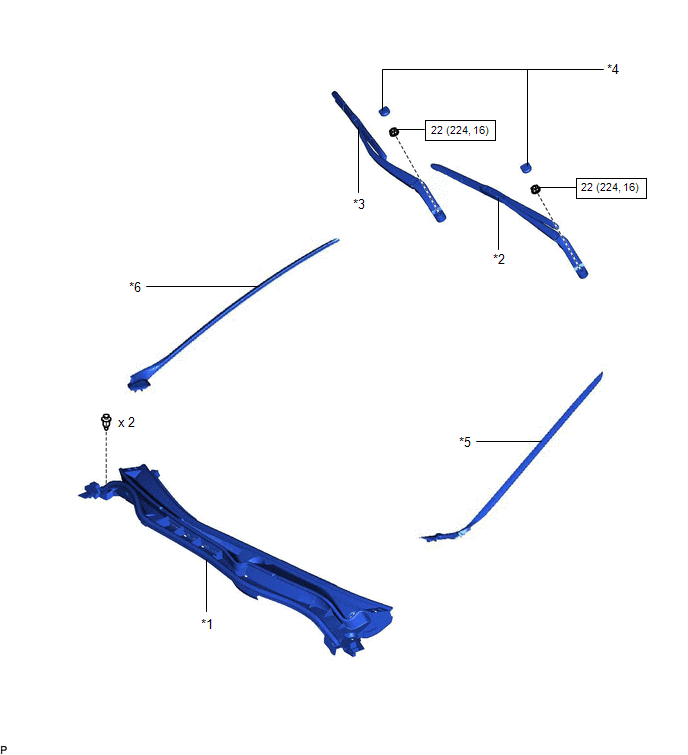

| *1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY | *2 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
| *3 | FRONT WIPER ARM AND BLADE ASSEMBLY RH | *4 | FRONT WIPER ARM HEAD CAP |
| *5 | WINDSHIELD OUTSIDE MOULDING LH | *6 | WINDSHIELD OUTSIDE MOULDING RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

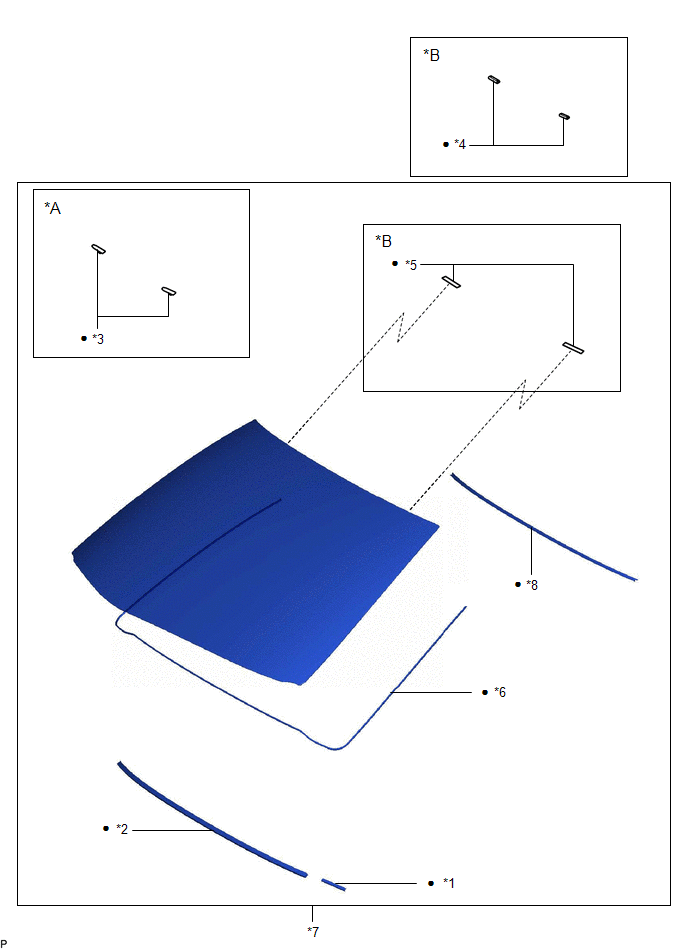

| *A | for 1-piece Type | *B | for 2-piece Type |
| *1 | FRONT WINDOW INNER MOULDING COVER LH | *2 | NO. 1 INSTRUMENT PANEL CUSHION |
| *3 | NO. 1 WINDSHIELD GLASS STOPPER | *4 | NO. 1 WINDSHIELD GLASS STOPPER |
| *5 | NO. 2 WINDSHIELD GLASS STOPPER | *6 | WINDSHIELD GLASS ADHESIVE DAM |
| *7 | WINDSHIELD GLASS SUB-ASSEMBLY | *8 | WINDSHIELD OUTSIDE MOULDING |
| • | Non-reusable part | - | - |
