Rear Power Window Switch
>>
Components [09/2020 - ]
Components [09/2020 - ]

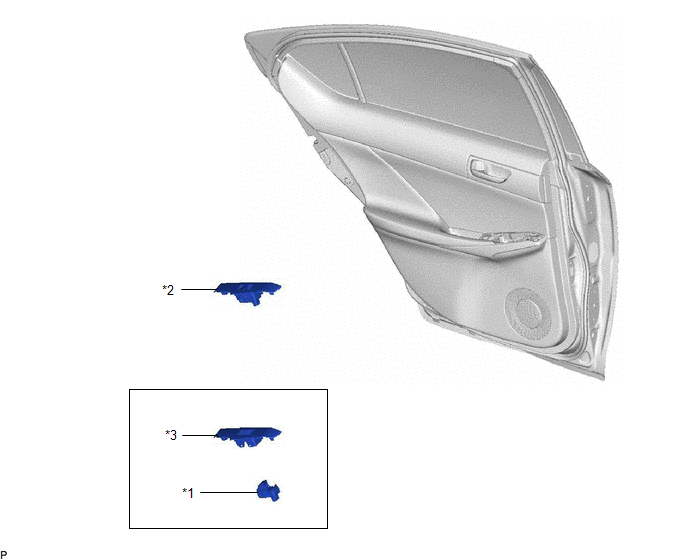

Fig 1: Rear Power Window Switch Replacement Components [09/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
*2
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
*3
REAR DOOR ARMREST BASE PANEL
-
-
