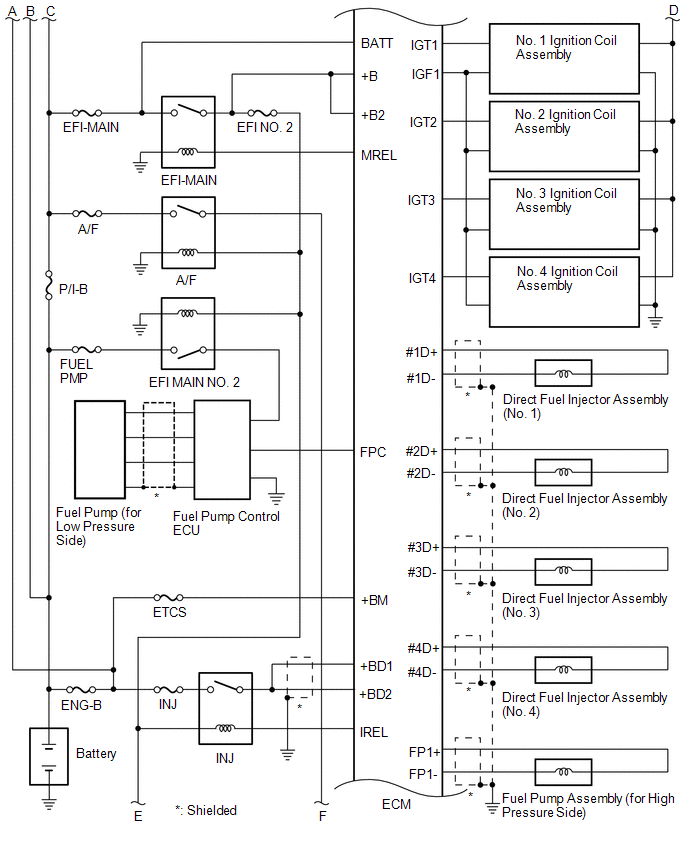

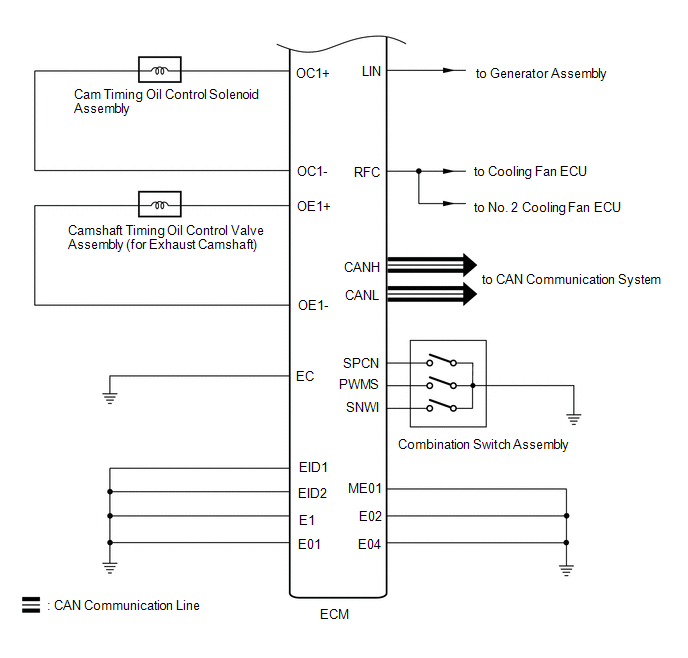

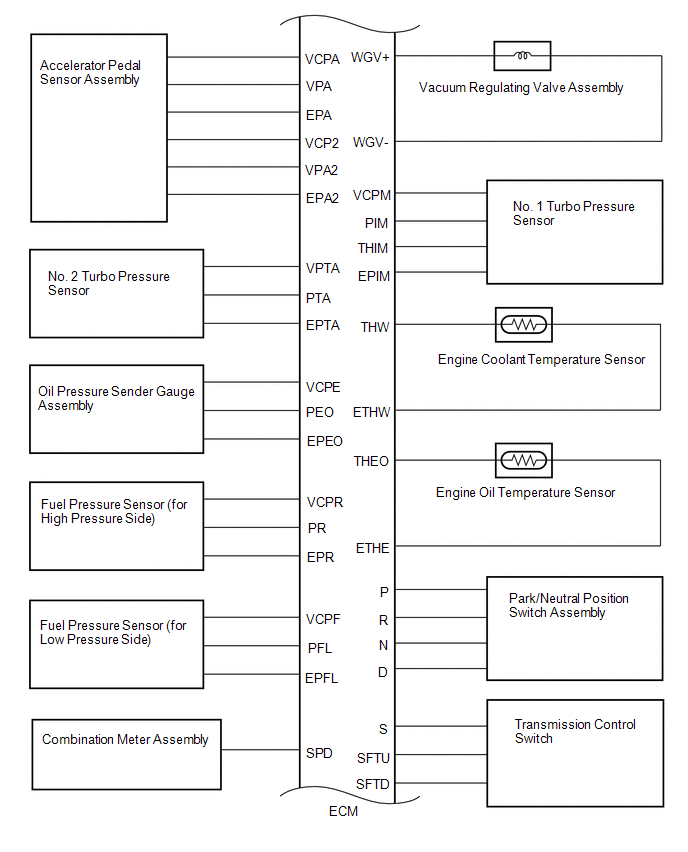

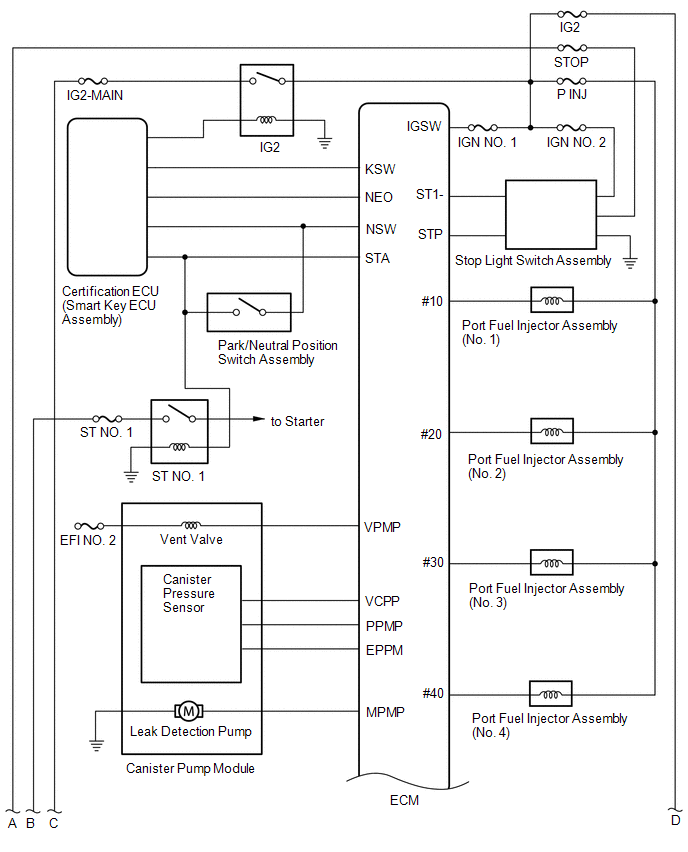

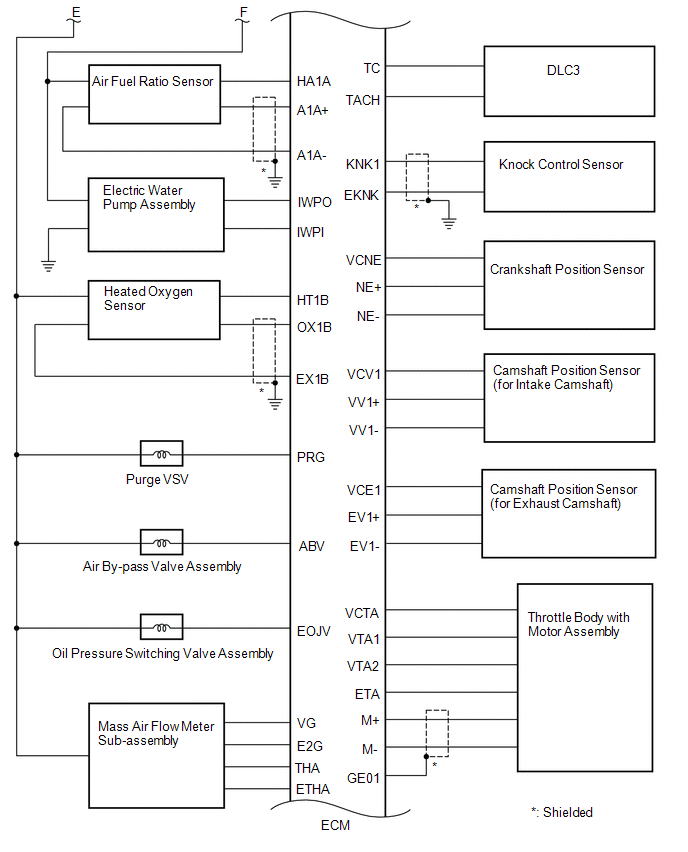

Home >> Lexus >> 2017 >> IS 200t Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (8AR-FTS) - Diagnostics - Introduction (1 Of 6) >> SFI System >> System Diagram [08/2015 - 09/2020] >> System Diagram [08/2015 - 09/2020]
