Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 9 [10/2017 - 09/2020]

  2. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 10 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 10 [10/2017 - 09/2020]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 11 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 11 [10/2017 - 09/2020]

  4. REMOVE OUTER MIRROR HEATER SWITCH ASSEMBLY

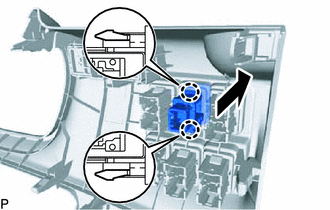

    1. Disengage the 2 claws to remove the outer mirror heater switch assembly.
      GTY459859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
