Removal [10/2016 - 09/2020]: Procedure

Refer to REMOVAL [10/2016 - 09/2020]

1. Disconnect the connector.

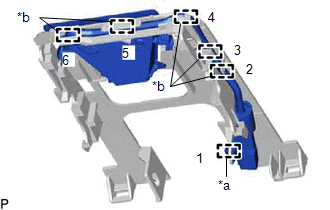

2. Disengage the clamp and 5 ribs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Clamp
   *b	Rib

   HINT:

   Disengage the clamp and ribs in the order shown in the illustration.

3. Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) in the illustration to disengage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
