Components [04/2013 - 10/2016]

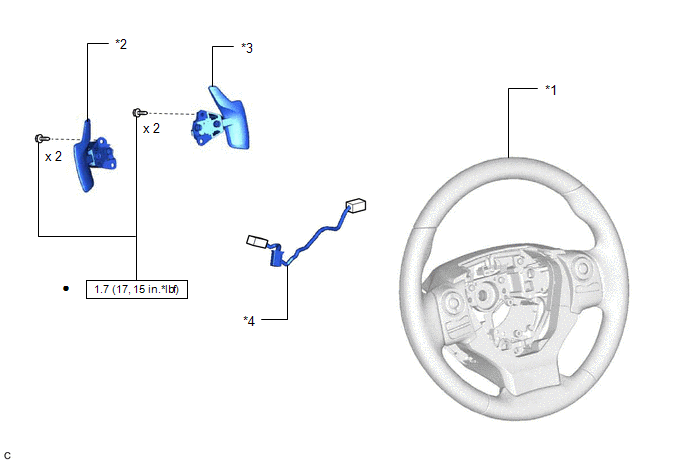

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications [04/2013 - 10/2016]
GTY470957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING WHEEL ASSEMBLY *2 SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) LH
*3 SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) RH *4 NO. 1 SWITCH WIRE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
