Components [04/2013 - 09/2020]

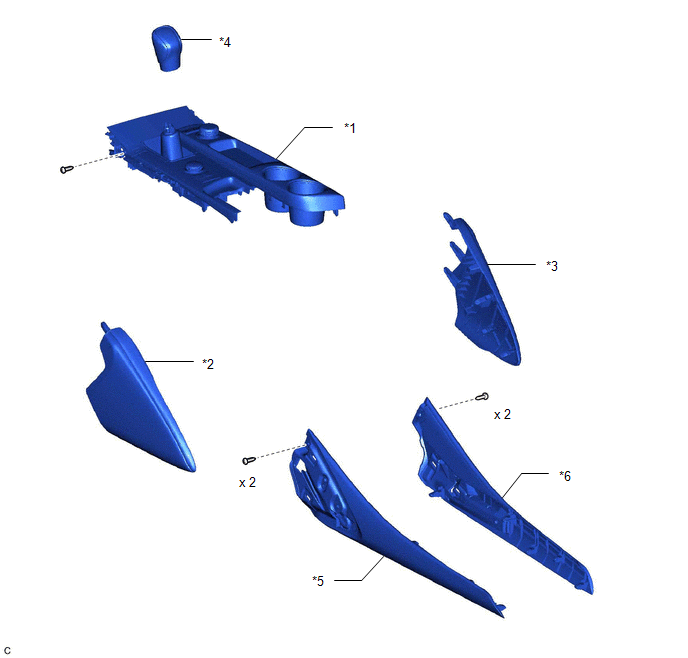

Fig 1: Combination Switch Replacement Components [04/2013 - 09/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE PANEL SUB-ASSEMBLY	*2	INSTRUMENT PANEL FINISH PANEL END LH
*3	INSTRUMENT PANEL FINISH PANEL END RH	*4	SHIFT LEVER KNOB SUB-ASSEMBLY
*5	FRONT PANEL GARNISH LH	*6	FRONT PANEL GARNISH RH

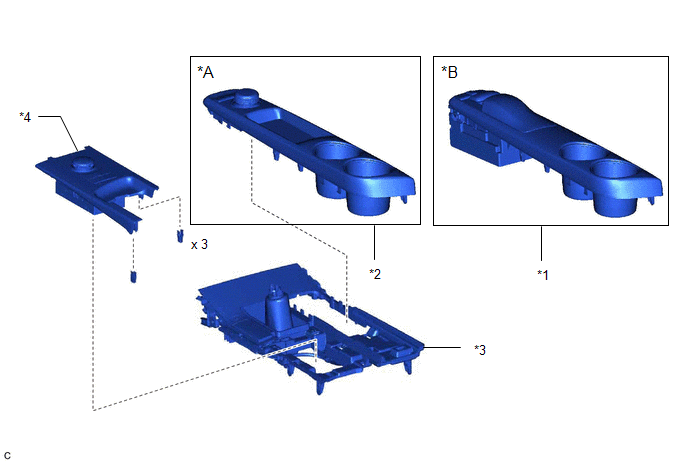

Fig 2: Combination Switch Replacement Components [04/2013 - 09/2020] (2 Of 2)

*A	For Radio and Display Type	*B	For Multi-Media Module Receiver Type
*1	REMOTE TOUCH	*2	LEXUS DISPLAY AUDIO CONTROLLER
*3	UPPER CONSOLE PANEL SUB-ASSEMBLY	*4	COMBINATION SWITCH ASSEMBLY
