Installation [08/2015 - 08/2019]: Procedure

  1. INSTALL STEERING HEATER SWITCH

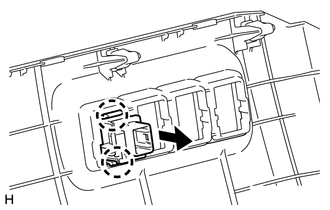

    1. Attach the 2 claws to install the steering heater switch to the lower instrument panel finish panel.
      GTY403910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 62 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 62 [08/2016 - 08/2019]

  4. INSTALL DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 64 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 64 [08/2016 - 08/2019]
