Disassembly [08/2022 - ]: Procedure

  1. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

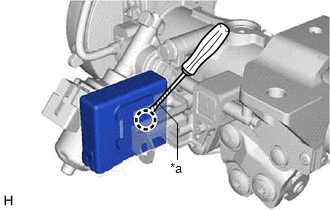

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the multiplex tilt and telescopic ECU.
      GTY647199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
