Components [08/2015 - 08/2019]

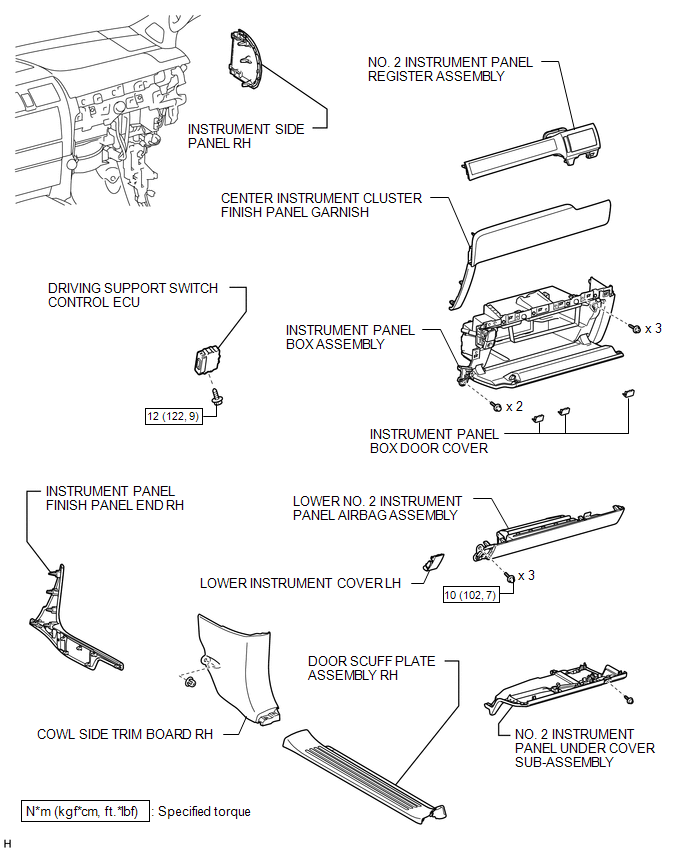

Fig 1: Driving Support Switch Control ECU Replacement Components With Torque Specifications
GTY612818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
